Wichard U-Bolt Pad Eye - 10mm Diameter - 25/64" - 90mm Length - 3-35/64"
Original price
$43.68
-
Original price
$43.68
Original price
$43.68
$43.68
-
$43.68
Current price
$43.68
Availability:
Only 2 left!
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

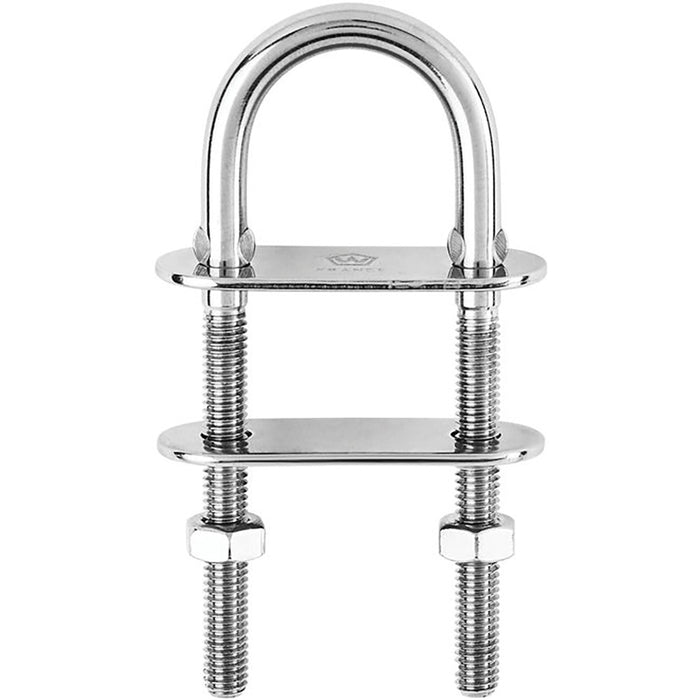

U-Bolt Pad Eye - 10mm Diameter - 25/64" - 90mm Length - 3-35/64"
Features:
- Fully drop forged product with high-quality stainless steel
- Outstanding working and breaking loads
- For any kind of fastening applications (shrouds, lifelines, blocks...)
- Delivered with bolts and counter-plate
- Max tightening torque: 36 Nm
Applications:
- Various fastening applications: shrouds, lifelines, blocks
Specifications:
- Materials: 316L stainless steel grade
- Working load: (lb) 7930 / (kg) 3600
- Breaking load: (lb) 15430 / (kg) 7000
- Weight: (lb) 0.441 / (g) 200

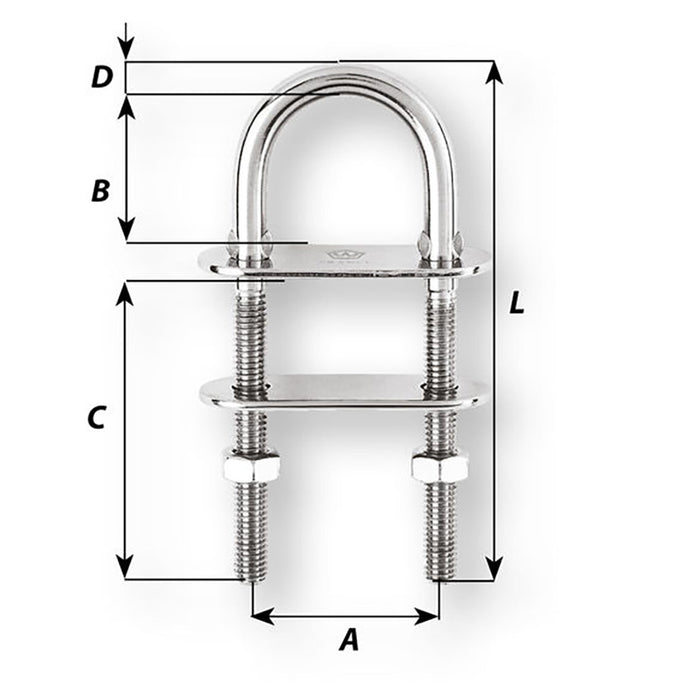

Dimensions:
- A: (inch) 1 37/64" / (mm) 40
- B: (inch) 1 17/64" / (mm) 32
- C: (inch) 1 49/64" / (mm) 45
- D diameter: (inch) 25/64" / (mm) 10
- Length: (inch) 3 35/64" / (mm) 90
- Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
