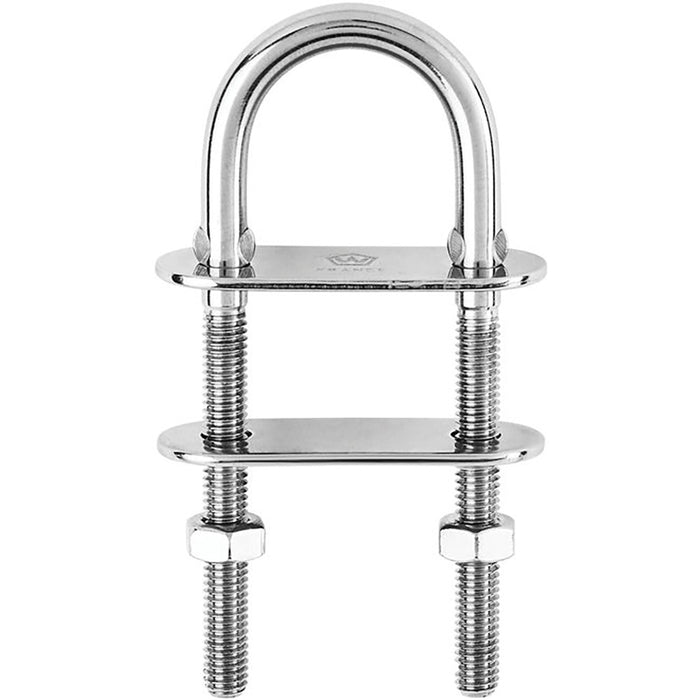

Wichard U-Bolt Pad Eye - 6mm Diameter - 15/64" - 90mm Length - 3-35/64"
Original price
$26.50
-
Original price
$26.50
Original price
$26.50
$26.50
-
$26.50
Current price
$26.50
Availability:
Only 3 left!
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
U-Bolt Pad Eye - 6mm Diameter - 15/64" - 90mm Length - 3-35/64"
Features:
- Entirely drop forged product with high-quality stainless steel
- Outstanding working and breaking loads
- For any fastening applications (shrouds, lifelines, blocks...)
- Delivered with bolts and counter-plate
- Max tightening torque: 7.5 Nm
Applications:
- Various fastening applications: shrouds, lifelines, blocks
Specifications:
- Materials: 316L stainless steel grade
- Working load: (lb) 2820 / (kg) 1280
- Breaking load: (lb) 6610 / (kg) 3000
- Weight: (lb) 0.148 / (g) 67

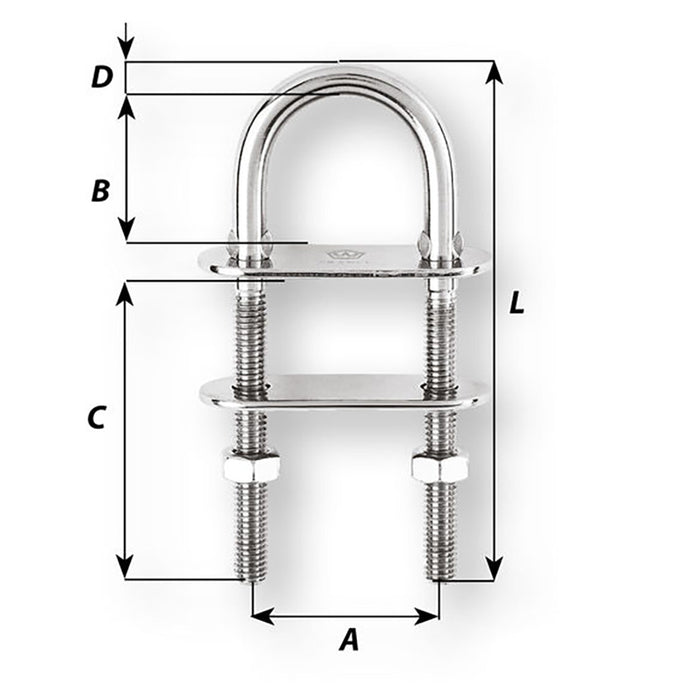

Dimensions:
- A: (inch) 1 17/64" / (mm) 32
- B: (inch) 1 1/16" / (mm) 27
- C: (inch) 2 11/64" / (mm) 55
- D diameter: (inch) 15/64" / (mm) 6
- Length: (inch) 3 35/64" / (mm) 90
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
