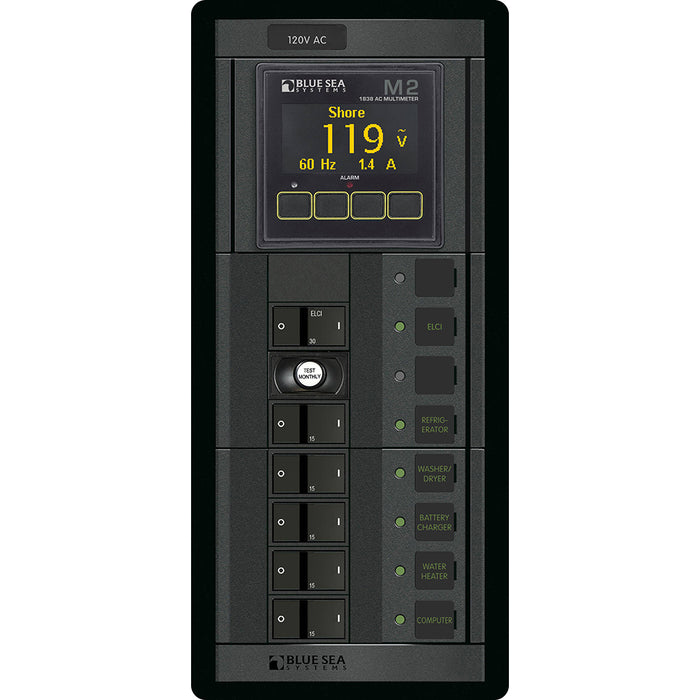

Blue Sea 1504 - 360 Panel - ELCI + 5 Position 120V AC Flat Rocker w/M2 AC Multimeter
Sold out
Original price
$1,014.07
-
Original price
$1,014.07
Original price
$1,014.07
$1,014.07
-
$1,014.07
Current price
$1,014.07
Availability:
Out of stock
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
1504 - 360 Panel - ELCI + 5 Position 120V AC Flat Rocker with M2 AC Multimeter
Part of the Blue Sea Systems Battery Management Panels. This one standard panel features Equipment Leakage Circuit Interrupter (ELCI) protection with branch breakers and will reduce the risk of fire and shock hazards caused by defects in appliances and circuit wiring.
Features:
- Provides Main circuit protection with branch circuits
- Green ON indicating LEDs
- Backlit label positions
Technical Specifications:
- Positions - Five (5) + ELCI
- Amperage - 30A AC trip reference
- Actuator Style - Flat Rocker
- Meter - M2 AC Multimeter
- Nominal Voltage - 120V
- Circuit Breaker Type - A-Series: 5 Branch (15A) and ELCI Main (30A)
- Leakage Trip Amps - 30mA
- Dimensions (H x W x D) - 10.75" x 4.88" x 3.99" (273 x 124 x 101mm)
In the Box:
- 1504 Panel
- Instruction Manual
*Sold as an Individual
