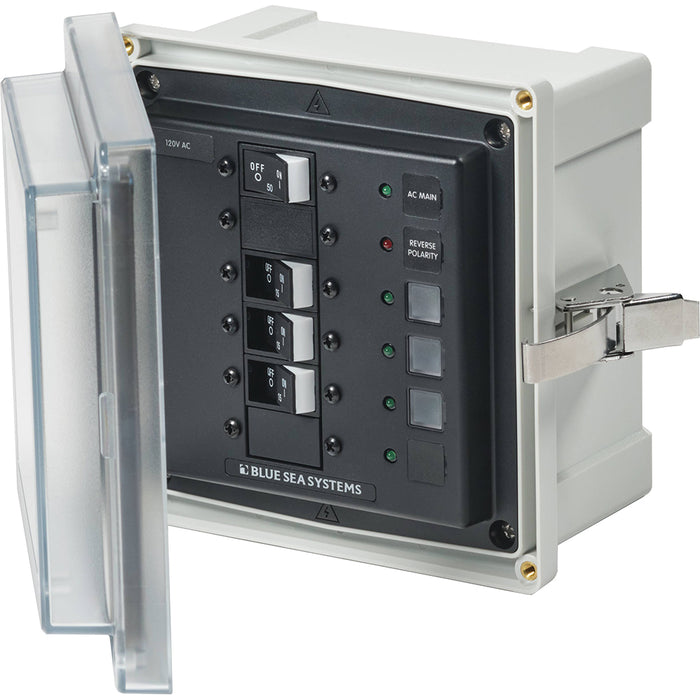

Blue Sea 3130 - SMS Panel Enclosure w/Main & 3 Branch (15A) - 120V AC

3130 - SMS Panel Enclosure with Main 3 Branch (15A) - 120V AC

The 3130-panel enclosure is built with UL-489 Circuit Breakers to meet CFR 46 / Coast Guard requirements.

Features:

• Blank apertures for custom breaker loading


• Glass-filled polycarbonate base


• Clear cover allows easy view of circuit breaker status


• Overlapping cover for strength and increased gasket protection


• Oversized, formed in place seamless PUR gasket


• Easily removable stainless steel hinge pin for unobstructed installation


• Stainless steel latch secures cover without penetrating the enclosure


• Blank circuit positions accommodate Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers


• Includes waterproof glands


• LED lights for backlighting and ON indication

Technical Specifications:

• Circuit Breaker Type - 1 x 120V Main and 3 x Branch (15A)


• Dimensions (Overall) (H x W x D) - 7.6 x 7.4 x 4.7 (192 x 188 x 120mm)


• Dimensions (Enclosure) (H x W x D) - 6 x 6 x 4 (152 x 152 x 102mm)


• LEDs Installed - 1 x Red (Reverse Polarity - 120V AC and 5 x Green ON (120V AC)

In the Box:

• 3130 Enclosure


• Glands x 4


• Labels


• Mounting hardware


• Instruction manual

*Sold as an Individual
