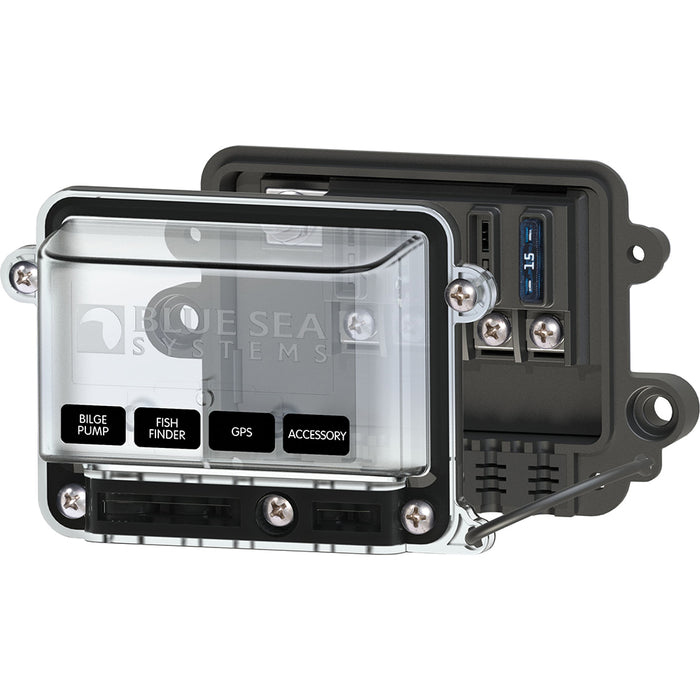

Blue Sea 5056 ST-Blade Water Resistant Fuse Block w/Cover
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
5056 ST-Blade Water Resistant Fuse Block with Cover
Provides water-resistant circuit protection for ATO/ATC fuses circuit breakers in a compact footprint. The single side nesting design allows for wire entry from one side to maximize space.
Features:
- Water-resistant design with standard ring or fork type terminals allows for simple wiring with standard tools
- Accepts a wide range of wire sizes
- Includes 3 wire plugs to maintain water resistant rating if less than 4 loads are required
- Accepts ATO and ATC fast-acting blade fuses
- Accepts ATO/ATC-Style Low Profile Circuit Breakers
- Nests with other ST-Blade Water-Resistant Fuse Blocks and Water-Resistant 100A Bus Bars to reduce wire
- Insulating cover meets ABYC/USCG insulation requirements
- Tin-plated copper busses and fuse clips
- Includes four write-on circuit labels
- Small format standard and custom labels available
- Spare fuse and fastener storage in cover
Specifications:
- Amperage: 80A per block/25A per circuit
- Maximum Voltage: 32V DC
- Bus Material: Tin-Plated Copper C11000
- Mounting Holes: Clearance for 1/4" (6mm) screws
- Screw Terminal Type: #8-32 Screws with captive star lock washer
- Wire Size: (1) 8 AWG to 4 AWG - Input/(5) 16 AWG to 10 AWG - Load
