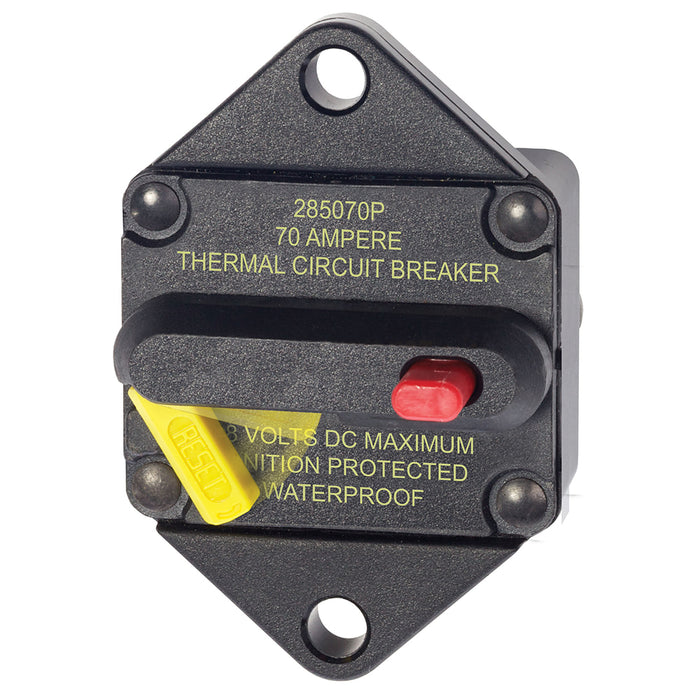

Blue Sea 7085 70 Amp Circuit Breaker Panel Mount 285 Series
Original price
$63.69
-
Original price
$63.69
Original price
$63.69
$63.69
-
$63.69
Current price
$63.69
Availability:
8 in stock, ready to be shipped
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
285-Series Thermal Circuit Breaker Panel Mount - 70A
Part#7085
- Drop in replacement for 185-Series Circuit Breakers
- Visible reset lever shows open condition
- Ignition protected - Safe for installation aboard gasoline powered boats
- Meets SAE J1171 external ignition protection requirements
- Weather Resistant
- Combines switching and circuit breaker function into one unit
- "Trip Free" - cannot be held closed after trip
* Do not use for direct control of high inrush loads such as motor starting.
Specifications
Interrupt Rating 3,000A @ 48V DC*
Maximum Voltage Rating 48 Volts DC
Operating Temperature Range -40C to 85C
Circuit Breaker Type Thermally Responsive Bi-metal blade
Circuit Breaker Class Type III - Switchable / Manual Reset - Trip Free
Terminal Stud Size M6 (accepts 1/4" Ring Terminal)
Terminal Stud Torque 50 in-lb
Mounting Holes Accept 1/4" (M6) screw
Weight Lb (Kg) 0.33 lb (0.15 kg)
* AIC ratings achieved using SAE J1625
