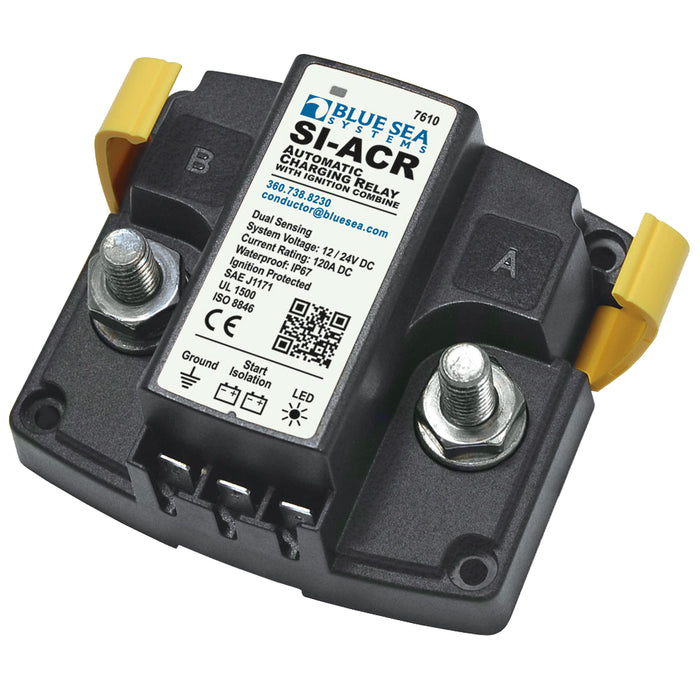

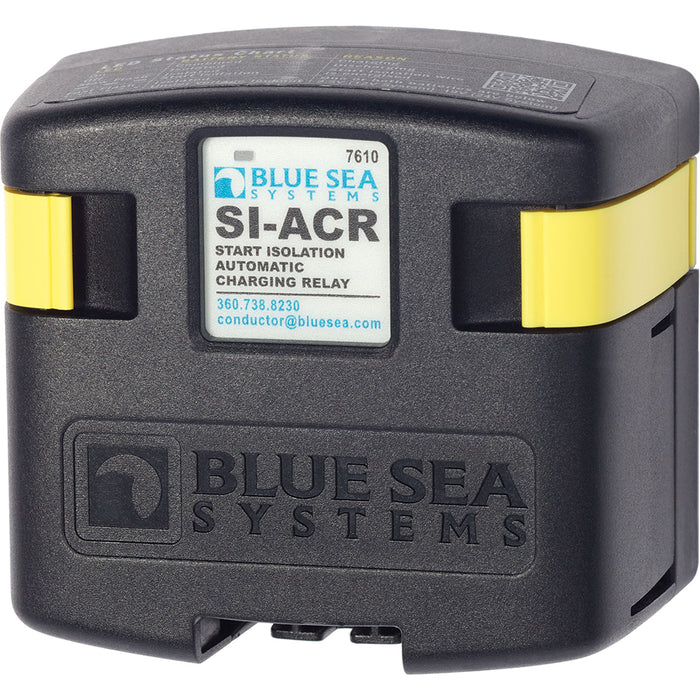

Blue Sea 7610 120 Amp SI-Series Automatic Charging Relay

7610

120 Amp SI-Series Automatic Charging Relay

• Allows temporary isolation of house loads from engine circuit during engine cranking to protect sensitive electronics


• Automatically combines battery banks during the charging cycle and isolates under discharge


• 12/24 Volt auto ranging voltage input


• Waterproof rated IP67 - temporary immersion for 30 minutes


• Ignition protected - safe for installation aboard gasoline powered boats


• Remote LED output indicates relay state away from ACR


• LED light indicates when batteries are combined


• LED blinks in undervoltage lockout and starting lockout


• Supports high-output alternators up to 120 Amperes


• Included with the ADD A BATTERY Dual Circuit System


• Automatically combines battery banks during the charging cycle and isolates under discharge


• Ignition protected - safe for installation aboard gasoline-powered boats


• Activates from any charging source - alternators, battery chargers, or solar panels


• Hermetically sealed contacts / vaporproof


• Side and bottom knockouts for power cable connections

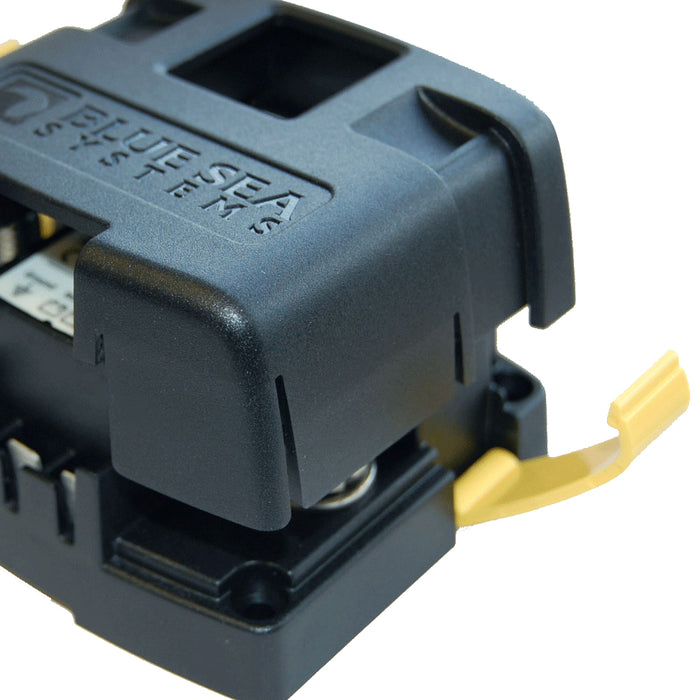

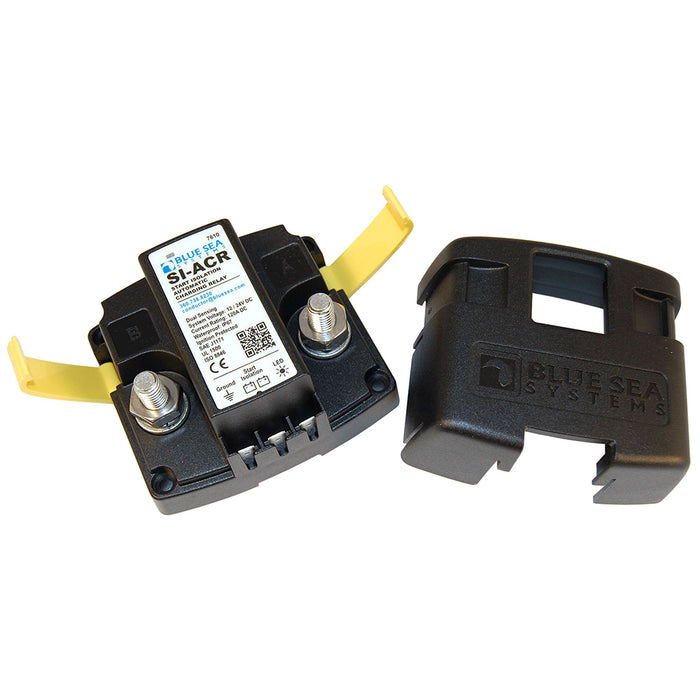

• Clip-on cover protects and insulates terminal connections


• Tin-plated copper studs for maximum corrosion resistance


• 7/8" (22.22mm) stud length to accept multiple cable terminals


• 1/4" x 0.031" male quick connect terminals for ground and remote LED and starting interrupt
