Airmar B117 50/200kHz 600W Mix & Match 0 Deadrise

B117 50/200kHz 600W Mix Match 0 Deadrise

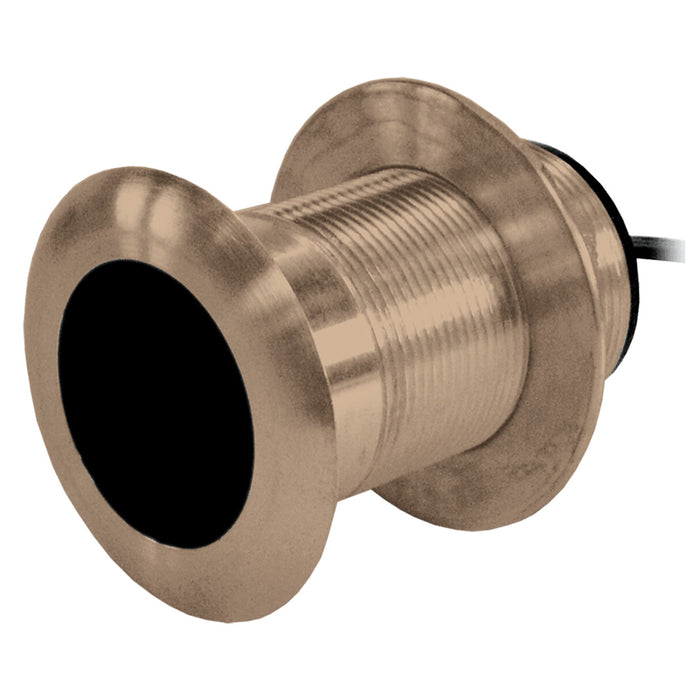

Airmars entry-level B117 features a single, 50/200 kHz, dual-frequency, ceramic element in a low-profile bronze housing. The nearly-flush design minimizes drag with only 5 mm (3/16) extending outside the hull.

Features:

• Depth only or depth and fast-response water-temperature sensing


• 600 W of power


• Dual-frequency element:


• 50 kHz with a wide 45 beamwidth for depth performance to 353 m (1200)


• 200 kHz with a 12 beamwidth for depth performance to 206 m (700)


• Right-angle cable exit saves space and protects the transducer if stepped on


• The included rubber washer allows tightening of the hull nut to irregular hull surfaces


• Low-profile, bronze housing has minimal drag


• Plastic (P319) and stainless steel (SS60) models are also available to accommodate all hull materials

Specifications:

• Power Rating: 600 W


• Max Deadrise Angle: 12


• Housing: Bronze


• Functions: Depth, Temperature


• Hull Material: Fiberglass or wood


• Max Vessel LOA: Up to 8 m (26)


• Hole Size: 51 mm (2)


• Acoustic Window: Urethane


• Common Use: Leisure/Yachting, Fishing


• Conventional Beam: 45/12


• Max Deadrise: Best performance through 7. Accommodates up to 12


• Max Depth: Low frequency- 366 m (1200), High frequency- 206 m (700)


• Mounting Style: Low Profile Thru-Hull


• Retractable housing: No


• Single or Dual Frequency: Conventional Dual Frequency


• Weight: 0.9 kg (2 lbs.)
