Airmar B117 Traditional/CW ThruHull 50/200kHz, 600W, Transducer, 9-Pin, DT f/Simrad, Lowrance & B&G

B117 Traditional/CW Thru-Hull 50/200kHz, 600W, Transducer, 9-Pin, DT for Simrad, Lowrance B G

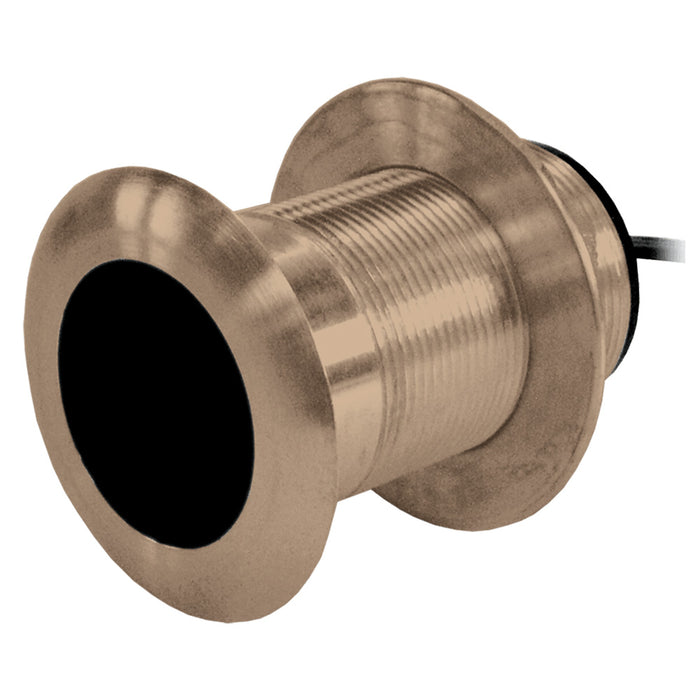

The B117 features a 50/200 kHz, dual-frequency, single, ceramic element in a low-profile bronze housing. The nearly-flush design minimizes drag with only 5 mm (3/16") extending outside of the hull.

Features:

• Depth only or depth and temperature


• 600 W


• Dual-frequency element: 50 kHz with a wide 45 beamwidth for performance to 353 m (1,200'), 200 kHz with a 12 beamwidth for performance to 206 m (700')


• Right-angle cable exit saves space and protects the transducer if stepped on


• Included rubber washer allows tightening of the hull nut to irregular hull surfaces


• Low-profile, bronze housing has minimal drag


• Plastic P319 and stainless steel SS60 models are also available to accommodate all hull materials and deadrise angles

Specifications:

• Weight: 0.9 kg (2.0 lb.)


• Recommended Boat Length:Up to 8 m (25')


• Hull Material:Fiberglass or wood


• Hull Deadrise:Best performance through 7. Can accommodate up to 12.


• Acoustic Window:Urethane


• Hole Diameter: 51 mm (2")
