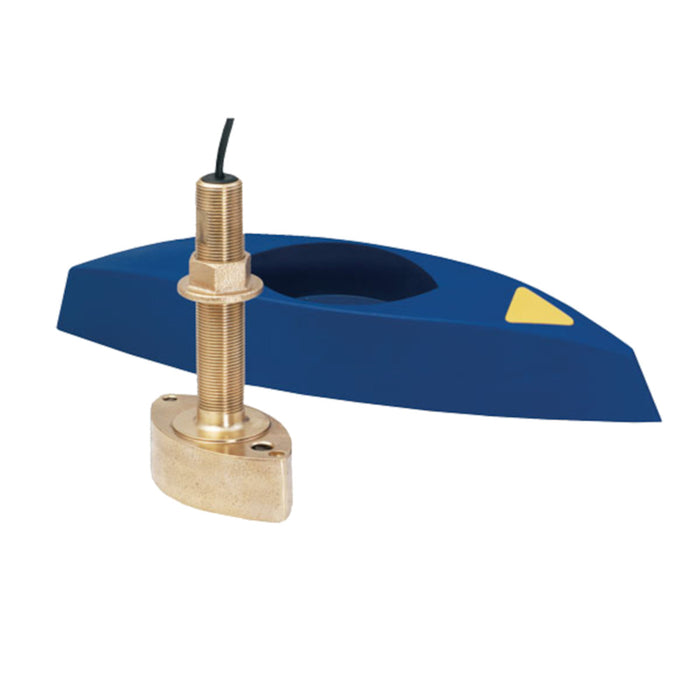

Airmar B45 Bronze Thru-Hull w/Depth & Temperature - 8-Pin f/Garmin

B45 Bronze Thru-Hull with Depth Temperature - 8-Pin for Garmin

The B45 is Airmars smallest, bronze, thru-hull stem, offering quality design at an economical price. The classic housing is streamlined to deflect aerated water from the transducers face, providing solid echo returns.

Features:

• Bronze housing


• Depth and Temperature


• Recommended for planning-hull powerboats and cruising sailboats up to 9 m (30)


• Good sensitivity in a compact housing


• High-performance fairing included


• Fast-response water-temperature sensor provides 0.2C (0.1F) accuracy

Specifications:

• Fits: All Garmin 50/200 kHz units with 8-pin


• Usable Shaft Length: 92 mm (3.62 in.)


• Standard fairing block: 33-351-01


• Frequency: 50/200 kHz


• Beamwidth: 50 kHz45, 200 kHz12


• RMS Power: 600 W


• Maximum Depth Range (50 kHz): 235 m to 353 m (800 ft. to 1,200 ft.)


• Maximum Depth Range (200 kHz): 118 m to 206 m (400 ft. to 700 ft.)
