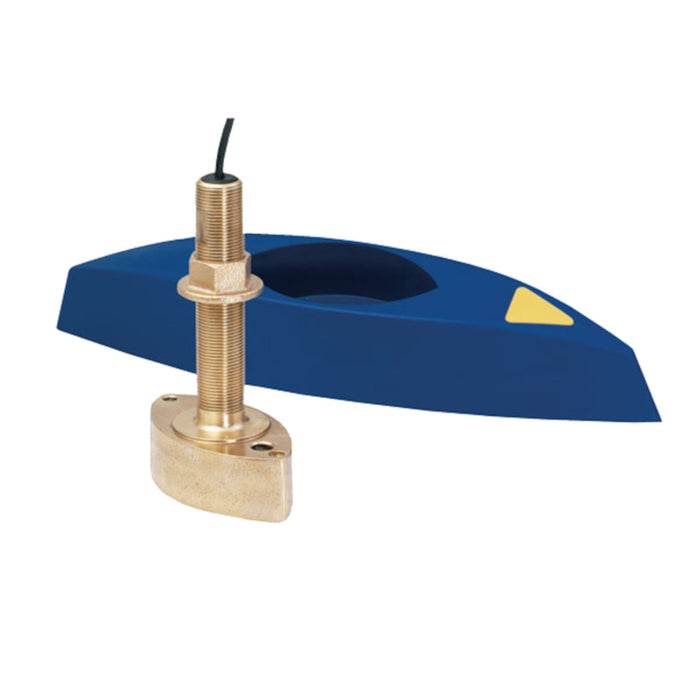

Airmar B45 Bronze Thru-Hull with Fairing Block - 50/200 kHz - 600W - 9-Pin Connector (xSonic)

B45 Bronze Thru-Hull with Fairing Block - 50/200 kHz - 600W - 9-Pin Connector (xSonic)

The B45 is Airmars smallest and most economical, dual-frequency, bronze, stem transducer. It features a single, 50/200 kHz ceramic element. The included fairing streamlines the transducer and increases the performanceeven at higher speeds.

Features

• The depth and fast-response water-temperature sensing


• 600 W of power


• Dual-frequency element:


• 50 kHz with a wide 45 beamwidth for depth performance to 353 m (1200')


• 200 kHz with a 12 beamwidth for depth performance to 206 m (700')


• Excellent performance and sensitivity in a small housing


• Bronze housing with High-performance Fairing for optimal performance at speed

Specifications

• Acoustic Window: Urethane


• Cable-Length: 10 m (33')


• Common Use:Cruising/Racing Sailboats, Leisure/Yachting, Fishing


• Connector: Simrad 9-Pin, Lowrance 9-Pin, Navico 9-Pin


• Conventional Beam: 45/12


• Country of Origin: USA


• Cross Reference: 000-13946-001


• Deadrise Range: Up to 28 with fairing


• Display Connector: 9N


• Frequency Band: 50/200 kHz


• Hole Size: 22 mm (7/8")


• Housing Material: Bronze


• Hull Material:Fiberglass or wood


• Max Deadrise: Up to 26 with fairing


• Max Deadrise Angle: 26


• Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700')


• Max Vessel LOA: Up to 9 m (30')


• Mix and Match Series: 5-Pin 600 Watt


• Mounting Style:Thru-Hull with Fairing


• Power Rating:600 W


• Sensor Connector: MM


• Single or Dual Frequency:Conventional Dual Frequency


• Tilted Element: No


• Transducer Functions:Depth, Temperature


• Usable Shaft Length: 92 mm (3.62")


• Weight: 2.5 kg (5.5 lb.)
