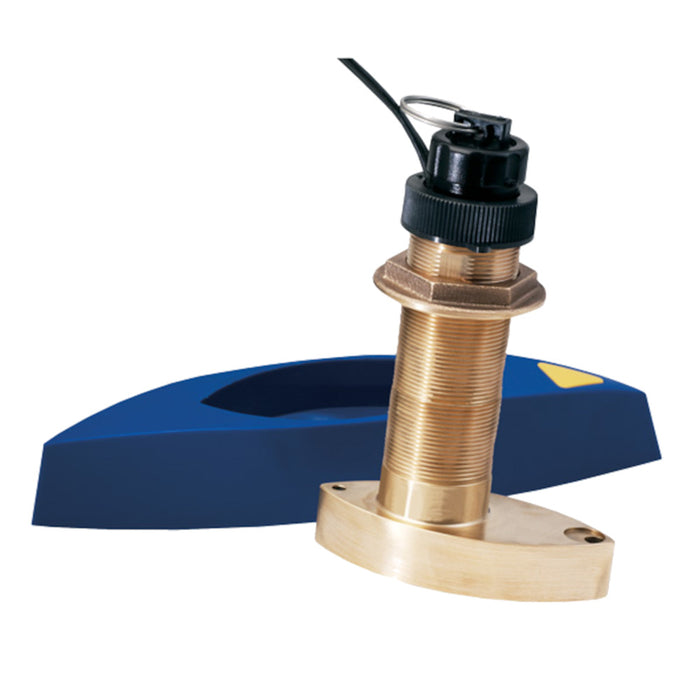

Airmar B744VL Long Stem Bronze Thru-Hull D/S/T w/FB 8-Pin

B744VL Long Stem Bronze Thru-Hull D/S/T with FB 8-Pin

The B744VL is a TRIDUCER Multisensor featuring depth, speed, and temperature in a single housing. The 50/200 kHz, dual-frequency, single, ceramic element provides great target detail in shallow water at 200 kHz and good deep-water bottom tracking at 50 kHz. The B744VLs extended stem length has the extra height needed for steep-deadrise vessels or thick, cored-fiberglass or wood hulls. The required High-performance Fairing gives excellent results at speeds up to 30 knots (34 MPH).

Features:

• Depth, speed, and fast-response water-temperature sensing in one housing


• 600 W of power


• Dual-frequency element:


• 50 kHz with a wide 45 beamwidth for depth performance to 353 m (1200)


• 200 kHz with a 12 beamwidth for depth performance to 206 m (700)


• Extra-long stem for thick or steep-deadrise hull


• Bronze housing with a High-performance Fairing for optimal bottom tracking at higher speeds


• Self-closing water valve reduces water flow into the hull when the paddlewheel insert is being replaced with the blanking plug


• Fins on the sides of the paddlewheel cavity provide improved accuracy in cross-flow conditions


• Also available with a shorter stem (B744V)

Specifications:

• Power Rating: 600 W


• Max Deadrise Angle: 24


• Housing: Bronze


• Functions: Depth, Speed, Temperature


• Hull Material: Fiberglass or wood


• Max Vessel LOA: Up to 9 m (30)


• Hole Size: 51 mm (2)


• Usable Shaft Length: 140 mm (5.50)


• Acoustic Window: Urethane


• Common Use: Leisure/Yachting, Fishing


• Conventional Beam: 45/12


• Max Deadrise: Up to 24 with fairing


• Max Depth: Low frequency- 366 m (1200), High frequency- 206 m (700)


• Mounting Style: Thru-Hull with Fairing


• Retractable housing: Yes


• Single or Dual Frequency: Conventional Dual Frequency


• Tilted Element: No


• Weight: 2.5 kg (5.5 lbs.)
