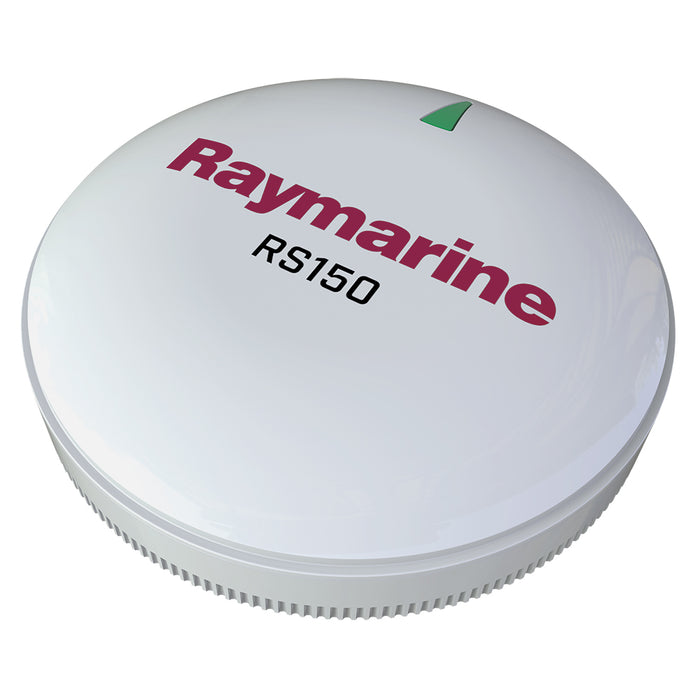

Raymarine RS150 GPS Sensor

RS150 GPS Sensor

The RS150 GPS is a high performance, 72-channel, remotely mounted GPS sensor for Raymarine navigation systems. The RS150 offers fast 10Hz position updates and enhanced accuracy. The RS150 is also a GNSS receiver and supports the GLONASS global navigation satellite system.

Features:

• 72-channel GPS receiver


• Fast 10Hz position updates


• Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support


• A GNSS receiver with GLONASS compatibility


• Low power consumption: 30mA (1 LEN)


• SeaTalkng and NMEA2000 compatible (using a device net adapter cable)


• Designed for low profile surface mounting or optional pole mounting

Specifications:

• Nominal supply voltage: 12V D.C. Powered by N2K bus


• Operating voltage range: 8 - 32V DC


• Power consumption: 30 mA max (NMEA LEN = 1)


• Operating temperature: -13F to 131F (-25C to +55C)


• Relative humidity: max 93%


• Waterproof: IPx6/7


• Supported connection protocols: SeaTalk^ng: NMEA 2000 (certified) (via DeviceNet adaptor)


• Sensitivity: High sensitivity - acquisition down to -163dBm


• No. of channels: 72


• Positioning System: GPS GLONASS


• Satellite Differential Type: WAAS (United States); EGNOS (Europe); MSAS (Japan); GAGAN (India)


• Differential acquisition: Automatic


• Position accuracy (95%): <15M


• Position accuracy with SDGPS (95%): <5M


• Speed accuracy (95%): <0.3kt


• Time to first fix from cold start: <2 minutes (< 45 seconds typical)


• Time to first fix from hot start: < 8 seconds -72 hour hold up battery allows for hot start


• Geodetic Datum: WGS84
