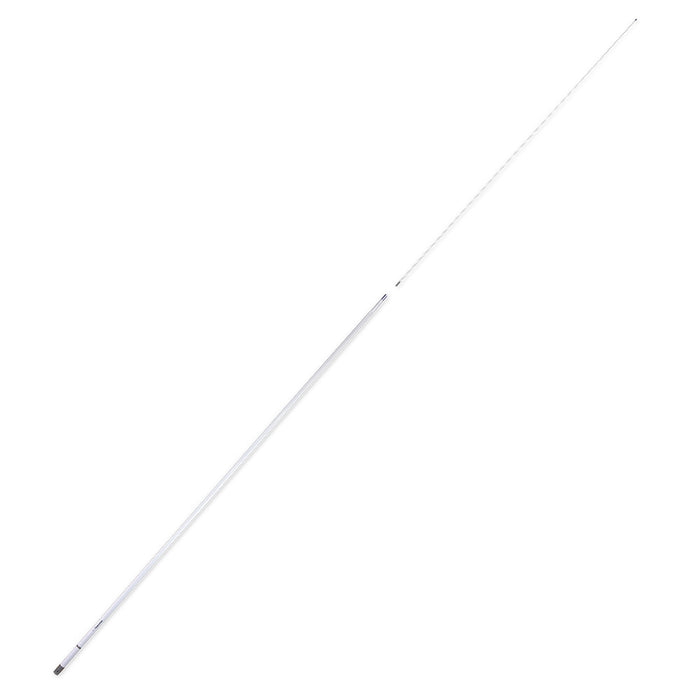

Shakespeare 390 23' Single Side Band Antenna NOT UPS SHIPPABLE
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
THIS PRODUCT MUST SHIP TRUCK FREIGHT AND DOES NOT QUALIFY FOR ANY SHIPPING PROMOTIONS
Shakespeare Style 390 SSB
23' LENGTH
WHIP ANTENNA WITH CONDUCTORS RUNNING FULL-LENGTH (NO LOADING COIL)
This award-winning performer is often referred to as the standard of the industry by virtue of its capabilities and popularity. Reinforced insulating qualities allow input power up to 1 kw. Conductors are permanently sealed in Shakespeare white fiberglass.

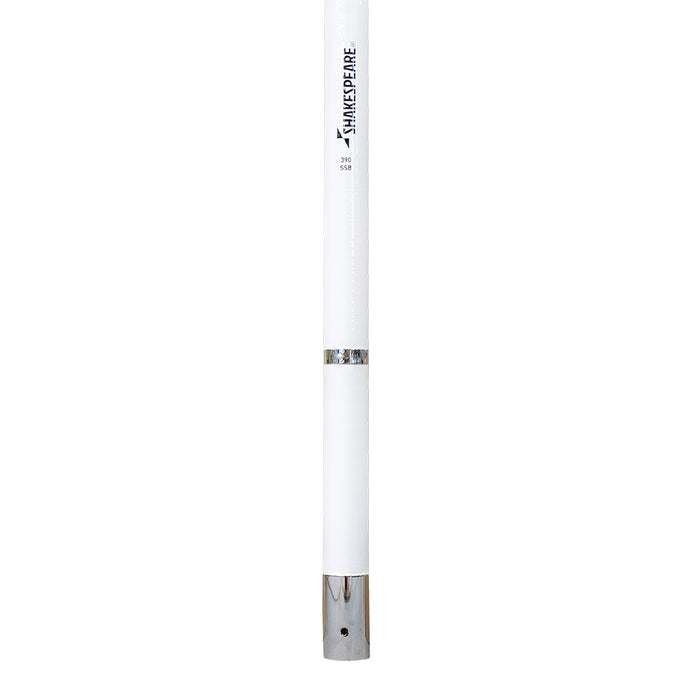

- Chrome-plated brass ferrules, bottom ferrule has 1-14 thread
- Side feed termination band
- Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit for deck or side mounting

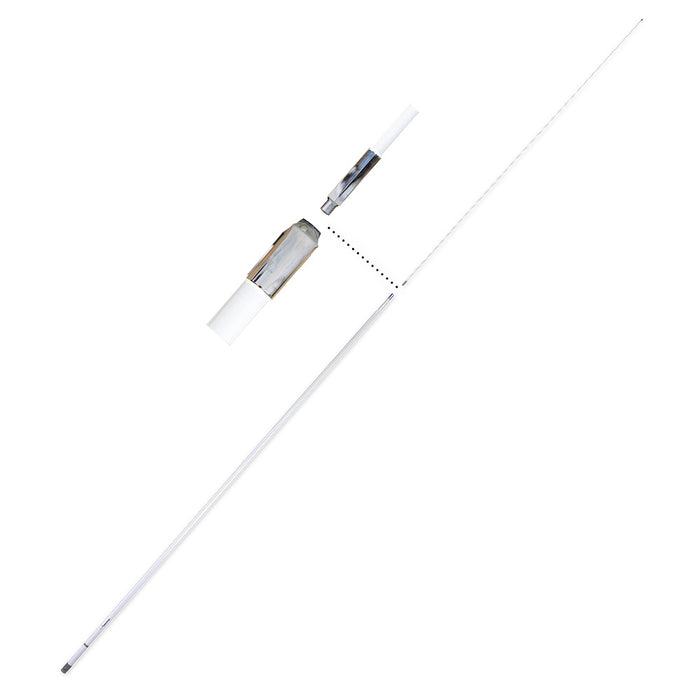

- Two sections: Base 162; Tip 112
- Shakespeare Limited Warranty: 2 years
Technical Specifications:
Frequency:
2-30 MHz HF band with tuner
Bandwidth:
Resonant frequency 10.8 MHz
SWR:
N/A
Impedance:
(Ohms): N/A
Gain:
N/A
Max Input (Watts):
1000
DC Ground:
N/A
Termination:
Side Termination
Height (feet):
23
Polarization:
Vertical
Radiation pattern:
Omni-directional
