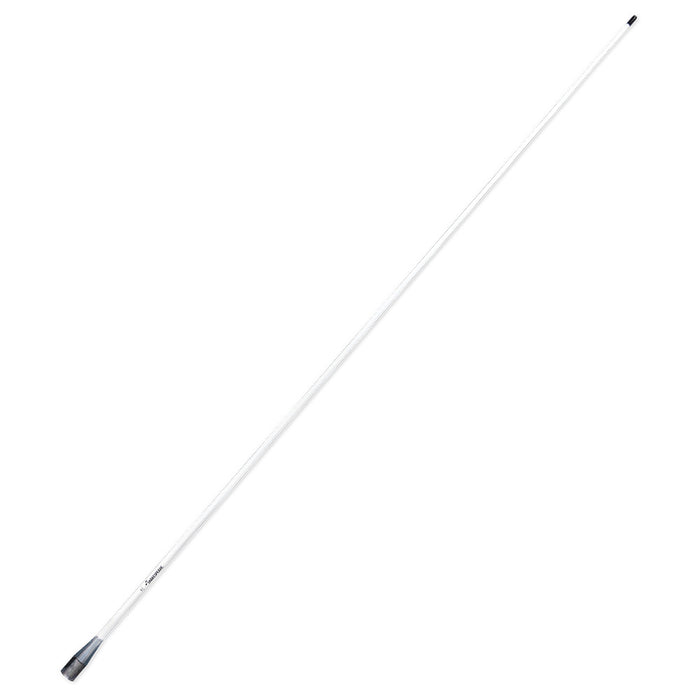

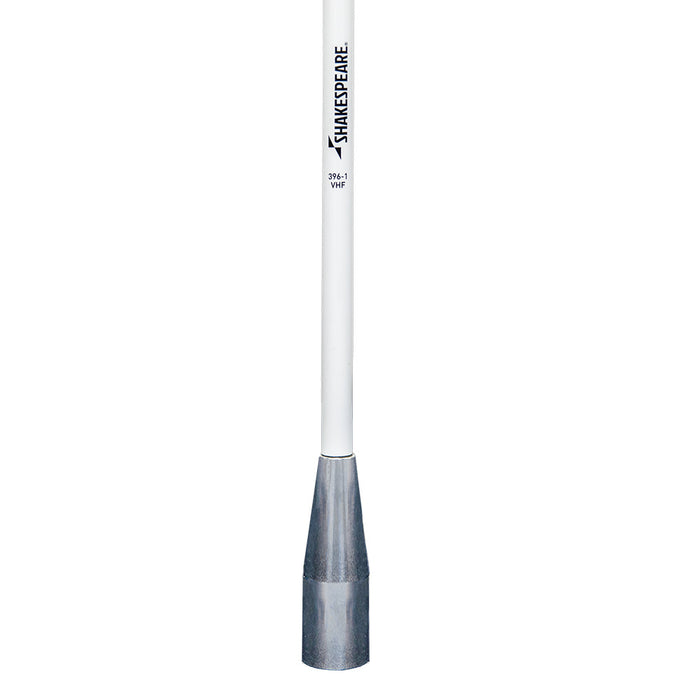

Shakespeare 396-1 5' VHF Antenna
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Style 396-1 VHF 3dB
Center-fed 1/2-wave coaxial sleeve
Outstanding, basic 3dB antenna designed to reduce signal fading in rough seas. This is probably the most widely used antenna on Coast Guard vessels.
- Brass and copper elements
- Chrome-plated brass ferrule with standard 1-14 thread
- Includes 15' RG-58 cable and a PL-259 connector
- Suggested mount: Style 4187 Ratchet Mount
- One section
Technical Specifications:
Frequency:
VHF Marine band
Bandwidth:
(within 2.0:1 SWR): 5 MHz
SWR:
1.5:1 at 156.8 MHz
Impedance
(Ohms): 50
Gain:
3 dB
Max Input (Watts):
50
DC Ground:
NO
Termination:
15' RG-58 cable
Height (feet):
5
Polarization:
Vertical
Radiation pattern:
Omni-directional
