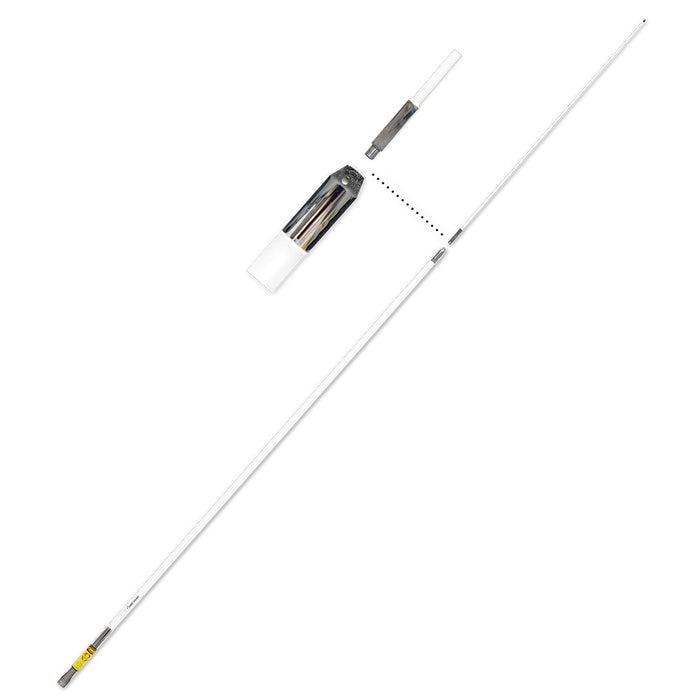

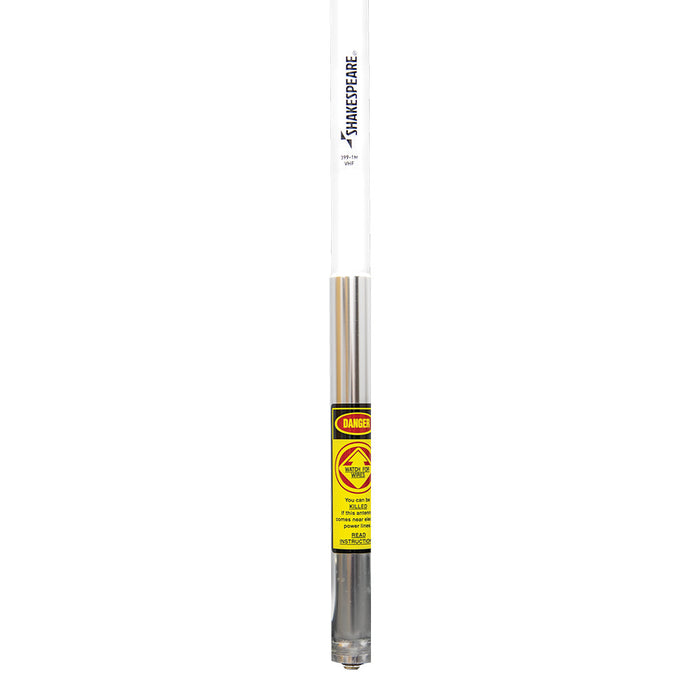

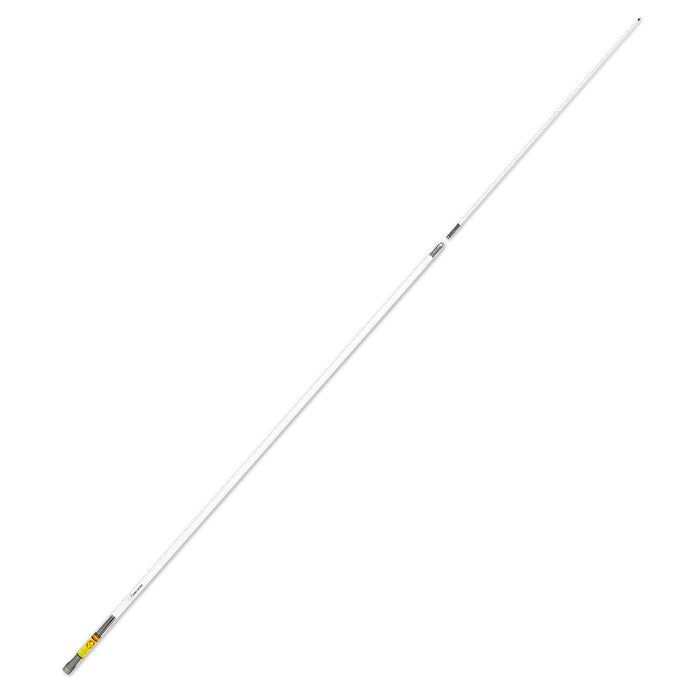

Shakespeare 399-1M 9'6" VHF Antenna
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Style 399-1M VHF 6dB
Collinear Phased 5/8-wave with two coaxial chokes to suppress cable radiation
The Style 399-1M is the same as the 399-1, but it has a special sleeve for mast mounting. A professional quality antenna in a compact package. This extra-duty antenna combines strength and performance for use where you really need the efficiency of a large antenna, but don't have room for one.
- Brass and copper elements
- Chrome-plated brass ferrule with standard 1-14 thread
- Aluminum sleeve for mast mounting
- Suggested mount: 1-1/4 U-bolts are supplied. The 399-1M can be strapped to a larger mast using steel banding (not supplied)
- Two sections: Base 75; Tip 39 UPS shippable
Technical Specifications:
Frequency:
VHF Marine band
Bandwidth:
(within 2.0:1 SWR): 5MHz
SWR:
1.5:1 at 156.8 MHz
Impedance:
(ohms): 50
Gain:
6 dB
Max Input (Watts):
100
DC Ground:
YES
Termination:
SO - 239
Height (feet):
9.5
Polarization:
Vertical
Radiation pattern:
Omni-directional
