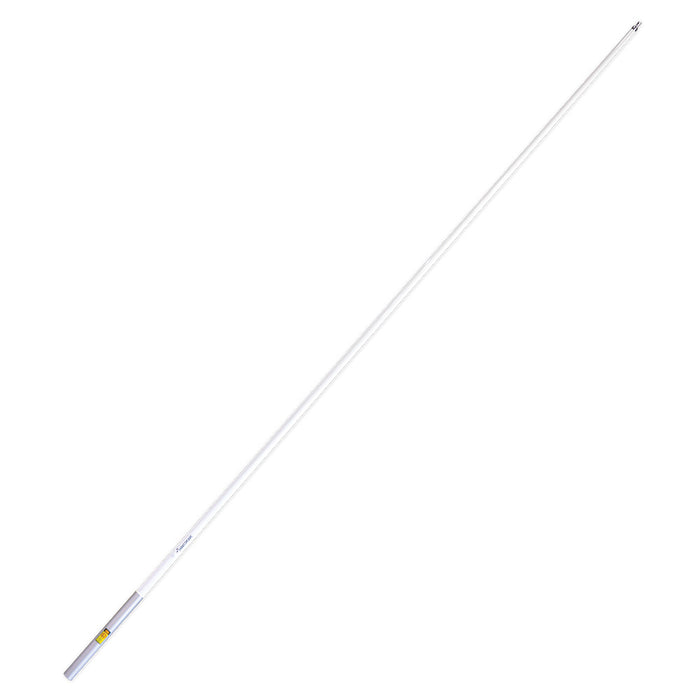

Shakespeare 476 18.5' Classic VHF Antenna

476 18.5 Classic VHF Antenna

*THIS PRODUCT MUST SHIP TRUCK FREIGHT AND DOES NOT QUALIFY FOR ANY SHIPPING PROMOTIONS

The Shakespeare 476 antenna is a one-section, phased 1/2-wave collinear array, commercial VHF 10dB marine antenna. Designed to get the message through when all others fail, this unique antenna puts the signal on the horizon, providing gain in all directions. For heavy-duty seagoing applications, such as workboats, tugs, tital well service boats, etc. The reduced-length version (now 185) has been shortened to maintain performance while making it easier to ship both internationally and domestically.

Built for value without compromising performance or durability, the Classic Series covers the widest variety of vessels in the Shakespeare family. These antennas keep you connected and meet essential communication needs while offshore.

Features:

• Brass and copper elements provide a standard range and reception

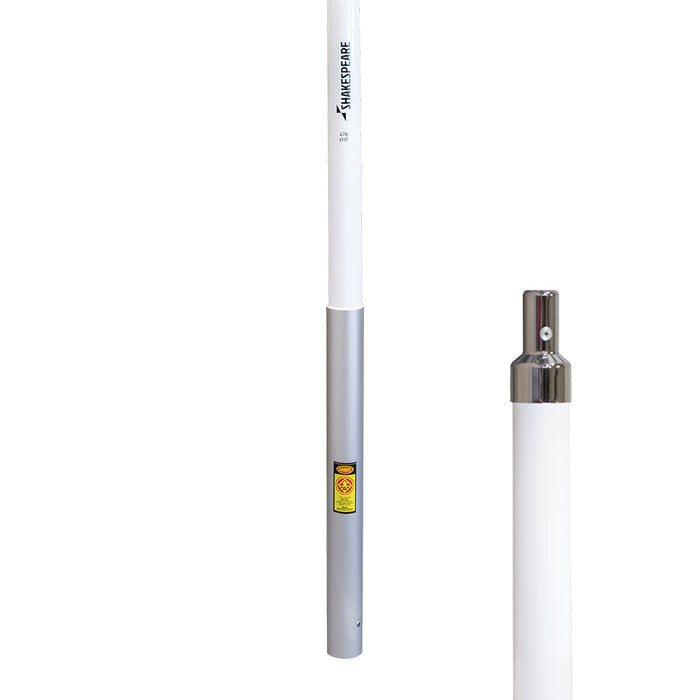

• Chrome-plated brass or nylon ferrule with standard 1: -14 thread provides for a basic install


• Smooth, durable, high-gloss white/fiberglass finish prevents yellowing


• VSWR of <1.5:1 at 156.8 MHz


• Utilizes 15 RG 58 cable, PL-259 connector type, unless otherwise noted below*


• 2-year warranty

Specifications:

• Frequency: VHF Marine band


• Bandwidth: (within 2.0:1 SWR): 10 MHz


• SWR: 1.5:1 at 156.8 MHz


• Impedance (ohms): 50 ohms


• Gain: 10 dB


• Max Input (Watts): 350W


• DC Ground: Yes - Read Shorted


• Termination: SO-239 connector


• Height (feet): 18.5


• Polarization: Vertical


• Radiation Pattern: Omni-directional


• Suggested Mount: 483 Mast Bracket
