Shakespeare 5206-N 8' VHF Antenna
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

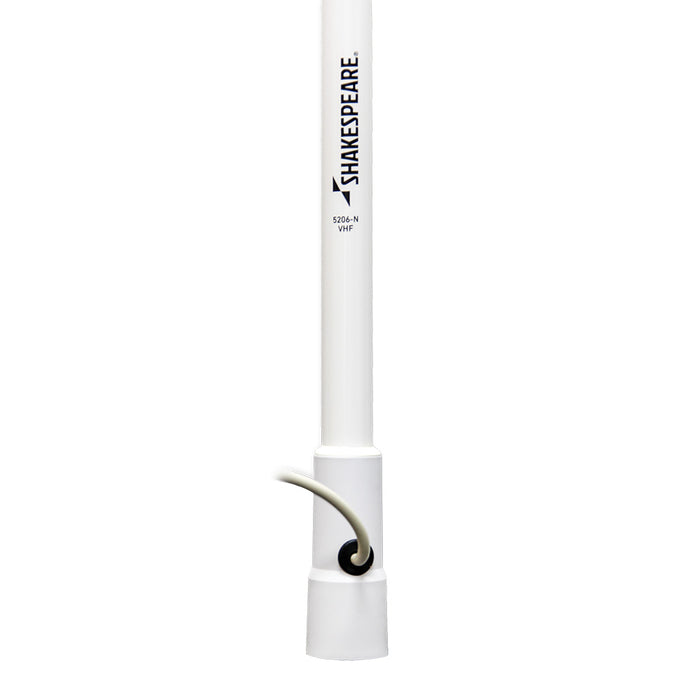

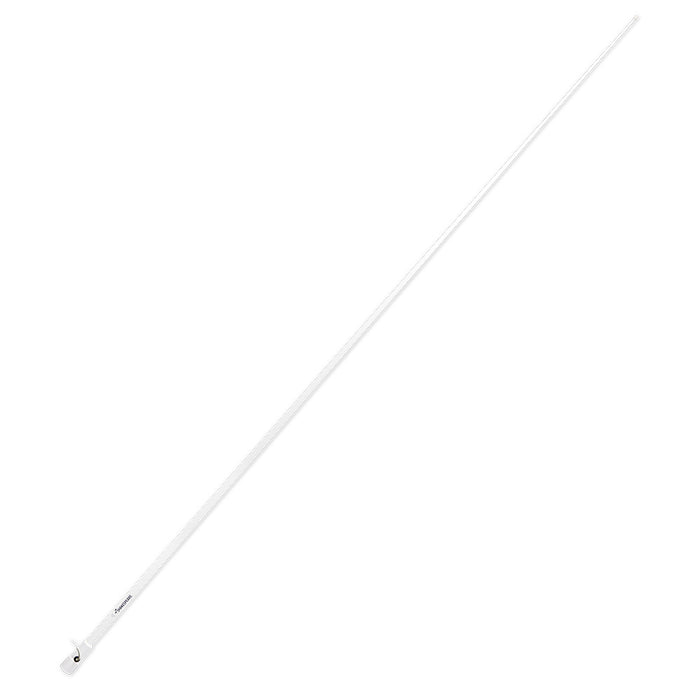

Shakespeare Style 5206-N VHF Marine - Reduced Length Version
8' LENGTH 6dB
END-FED WITH MATCHING STUB
Same as the Style 5206-C, but the 5206-N has a nylon ferrule.
An economical and lightweight, self-supporting antenna for good communications where range is not the predominant factor.
- Quality copper cable elements for good range and efficiency
- Nylon ferrule with standard 1-14 thread
- Includes 15' RG-58 cable and a PL-259 connector
- Suggested mount: Shakespeare Style 495 Lift-n-Lay Mount or Style 4186 Ratchet Mount
- Twin to: Shakespeare Styles 5205 and 5207 CB Marine antennas
- One section
- Shakespeare Limited Warranty: 2 years
Technical Specifications:
Frequency:
VHF Marine band
Bandwidth:
3 MHz
SWR:
1.5:1 @156.8 MHz
Impedance:
(Ohms): 50
Gain:
6 dB
Max Input (Watts):
50
DC Ground:
NO - the antenna will read open circuit when checked with an ohm meter or continuity tester.
Termination:
RG-58
Height (feet):
8
Polarization:
Vertical
Radiation pattern:
Omni-directional
