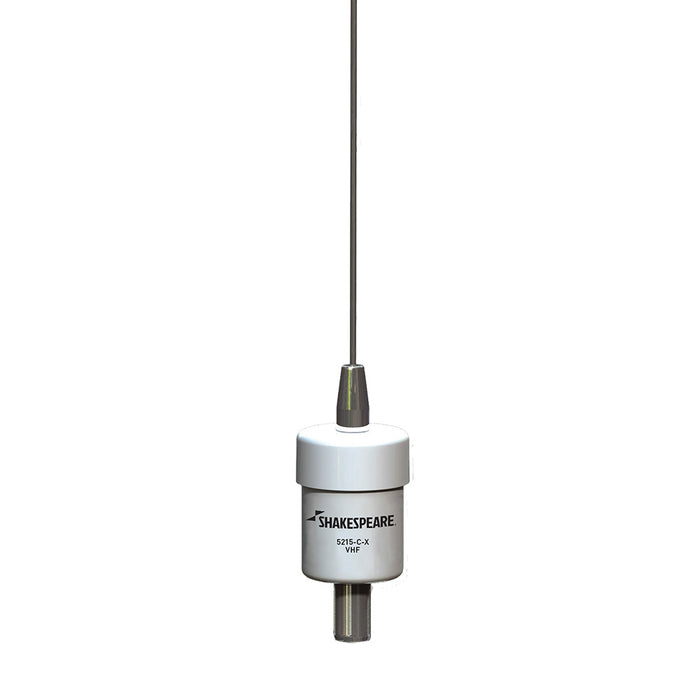

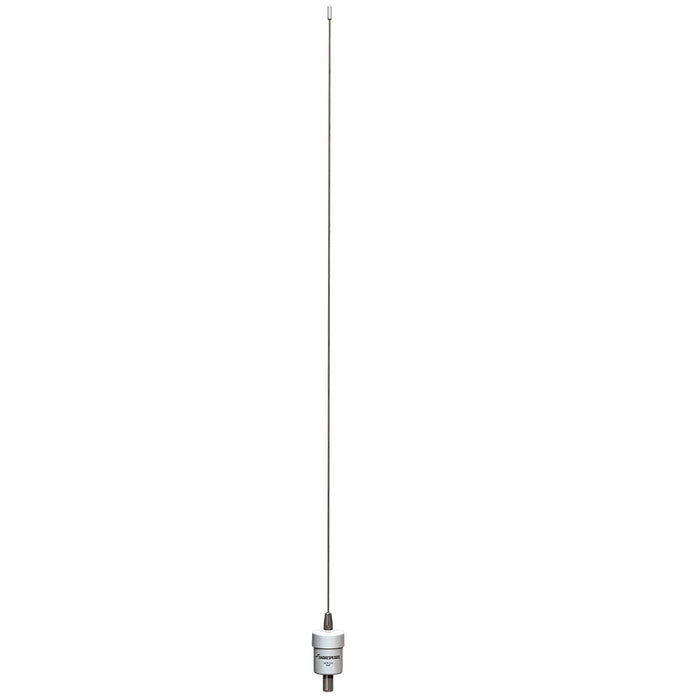

Shakespeare 5215-C-X 3' VHF Antenna
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Shakespeare Style 5215-C-X SQUATTY BODY VHF Marine
36 LENGTH, 3dB
END-FED 1/2-WAVE STAINLESS STEEL WHIP
Same as the Style 5215 but comes with 60' RG-8/X low-loss cable and PL-259 connectors.
A favorite with Sailboat owners, this lightweight, low profile, stainless steel antenna is specially designed for masthead mounting.
- Hermetically sealed, tin-plated copper wire coil
- Stainless steel body and whip
- SO-239 connector
- Includes 60' RG-8/X low-loss cable and PL-259 connectors.
- Mount: Stainless steel L bracket supplied, for mast mounting
- One section
- Shakespeare Limited Warranty: 2 years
Technical Specifications:
Frequency:
VHF Marine band
Bandwidth:
7 MHz
SWR:
1.5:1 @ 156.8 MHz
Impedance:
(Ohms): 50
Gain:
3 dB
Max Input (Watts):
50
DC Ground:
NO
Termination:
60' RG-8X cable
Height (feet):
3'
Polarization:
Vertical
Radiation pattern:
Omni-directional
