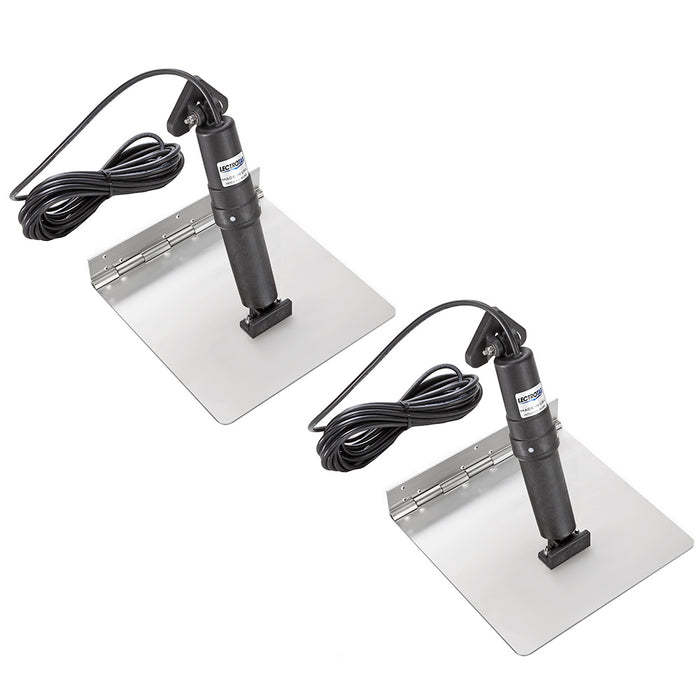

Lectrotab XKA Stainless Steel Trim Tab - 9 x 18

XKA Stainless Steel Trim Tab - 9 x 18

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

*Control switch not included

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding


• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth


• Utilizes internal pressure equalization system


• Internal brake system prevents unwanted tab movement when under way or backing down


• Quiet operation


• Actuators are fully load tested to push 1000 lbs of force


• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 18" (23 x 46 cm)


• Boat Length - 21' to 30' (6.5 to 9 M)


• Trim Tab Material - 12 gauge, 304 Stainless Steel


• Actuator DC Voltage - 12 V


• Actuator Stroke Length - 2.25" (57 mm)


• Actuator Cable Length - 23' (7 M)


• Actuator Vertical Height - 11.875" (302 mm)

In the Box:

• Two (2) Stainless Steel tabs


• Two (2) actuators w/23' (7 M) cables


• Instruction Manual

*Sold as an Individual
