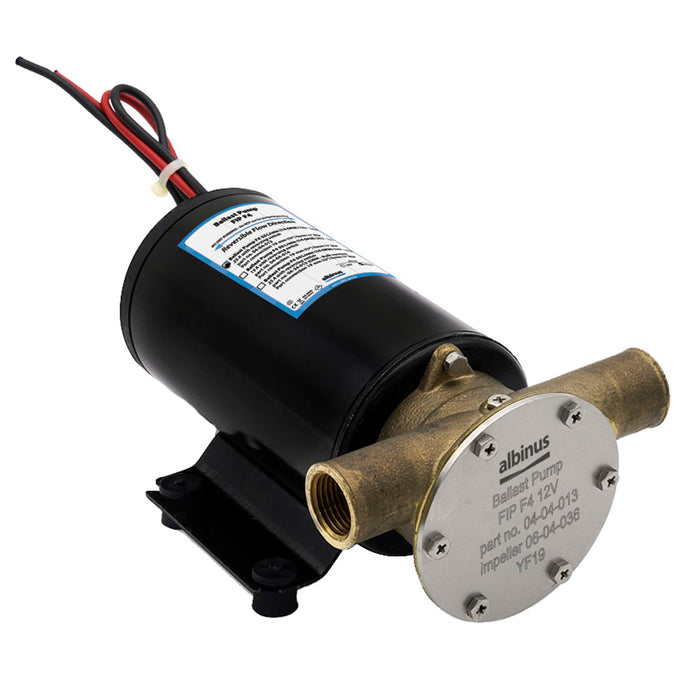

Albin Group Ballast Pump FIP F4 12V

Ballast Pump FIP F4 12V

DC 12V F4-size ballast pump with a capacity of 55 L/min (14.25 GMP). This pump is used for ballast pumping of water between tanks.

Features:

• Pump body in brass, stainless steel shaft, premium ballast MC19 compound impeller, and seawater-resistant shaft seal


• Self-priming up to a 3m vertical lift


• Reversible flow direction


• 25A fuse reversing


• 16A normal duty


• Protected against ignition by surrounding flammable gases, ISO 8846


• Replacement premium ballast impeller in MC19 compound, PN 06-04-036

Specifications:

• Port Connections: 3/4 in. (19mm)


• Hose Connection: 1/2" threaded BSP


• Weight: 0,8 kg/1 Lb


• Dimensions (L x H x W) (mm/in): 180/7 x 90/3.5 x 120/4.7


• Type: Reversible flow direction by changing polarity


• Certification: CE marked 94/25/ECC, ISO8846 Small Craft, Electromagnetic compatibility 89/336/EEC, EN51014 1993/radio disturbance
