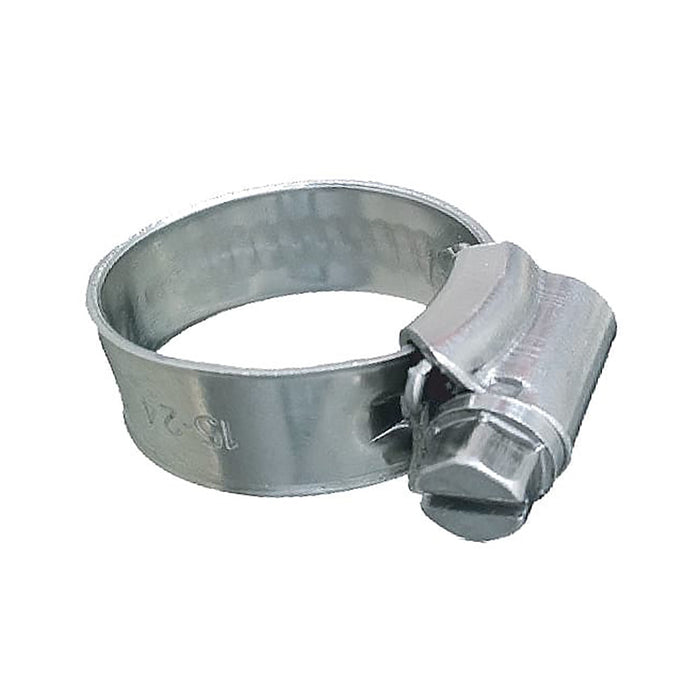

Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - (3/4" 1-1/8") Clamping Range - 10-Pack - SAE Size 10
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - (3/4" 1-1/8") Clamping Range - 10-Pack - SAE Size 10
Premium Marine Grade, all AISI 316 (high tensile strength) Stainless Steel Compact HD NON-PERF Worm Gear Hose Clamp. The 9.7 mm (0.382) wide band is Non-Perforated and smooth on the inside with rolled edges. This eliminates hose damage with increased clamping force. The high strength, compact, one-piece 14mm (0.55) wide housing provides one of the highest clamping force ratings of any worm gear style clamp.
Features:
- The screw head is 7mm
- Long service life and safety for most general-purpose hose applications and connections
Recommendations:
- Measure hose O.D. before selecting clamp size for proper fit
- Double clamp on each hose end for critical applications
Construction:
- Band Housing: 316 Stainless Steel 9.7 mm wide band 0.8mm thick
- Screw Drive: 316 Stainless Steel 7.0 mm screw head
Specifications:
- SAE Size: 10
- Hose Inner Diameter: (inch) 1/2" 5/8"
- Clamping Range: (inch) 3/4" 1 1/8" / (mm) 19-28
- Recommended Torque Inch lbs: 25-35
