Trident Marine 5/8 A2 Fuel & Vent Line Hose - Black - Sold by the Foot

5/8 A2 Fuel Vent Line Hose - Black - Sold by the Foot

Trident 5/8 ID A2 Fuel Hose is a gasoline vent hose (including ethanol blends) and diesel (including bio diesel blends).

Features:

• Sold by the foot


• This hose is built with the best fuel, fire, and age-resistant formulation


• Provides extraordinary resistance to aging, fire, heat, cold, and the ozone


• Also, provides excellent bend-ability

Application:

• Marine Fuel Hose for vent and diesel distribution


• For all marine fuels including gasoline, alcohol blends, diesel and bio-diesel

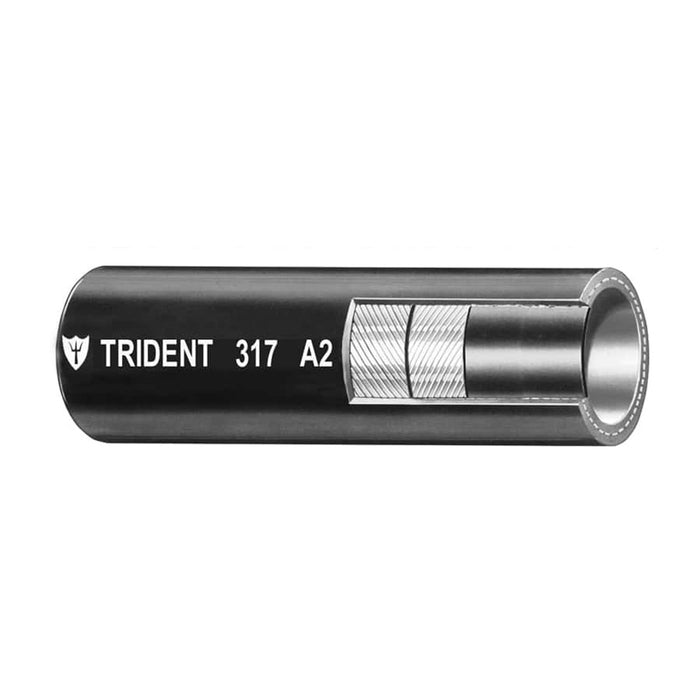

Construction:

• Tube: NBR


• Cover: NBR/PVC Blend


• Reinforcement: Polyester 2 spiral


•
  TemperatureRange:-20F to 212F (-28C to 100C)



• Length: Sold by the Foot

Specifications:

• Inner Diameter: (inch) 0.625" / (mm) 15.9


• Outer Diameter: (inch) 0.960" / (mm) 24.4


• Burst Pressure: (psi) 200 / (mpa) 1.38


• Working Pressure: (psi) 50 / (mpa) 0.34


• Bend Radius: (inch) 3" / (mm) 76.2


• Weight: (Lb./100ft.) 25.84 / (Kg/m) 11.72

*The #317 series exceeds ABYC H-24 H-33, SAE J1527, ISO 7840, USCG Type A2; and is NMMA Type Accepted CE certified.
