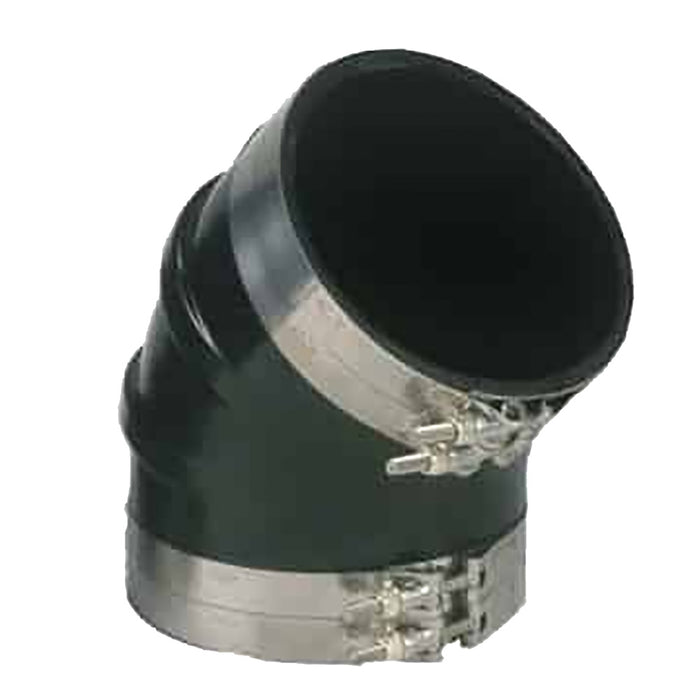

Trident Marine 8" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow w/4 T-Bolt Clamps

8" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6 I.D. or bigger have molded reinforcing ribs on the outside.

Features:

• Four stainless steel clamps are included


• This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging


• Exceeds (SAE J2006-R1, and ABYC NMMA P-1 exhaust standards)


• Black high-temp EDPM rubber

Construction:

• Color: Black


• Reinforcement: Reinforcing ribs on 6 I.D. and above


• Temperature Range: up to 250F (121C)

Specifications:

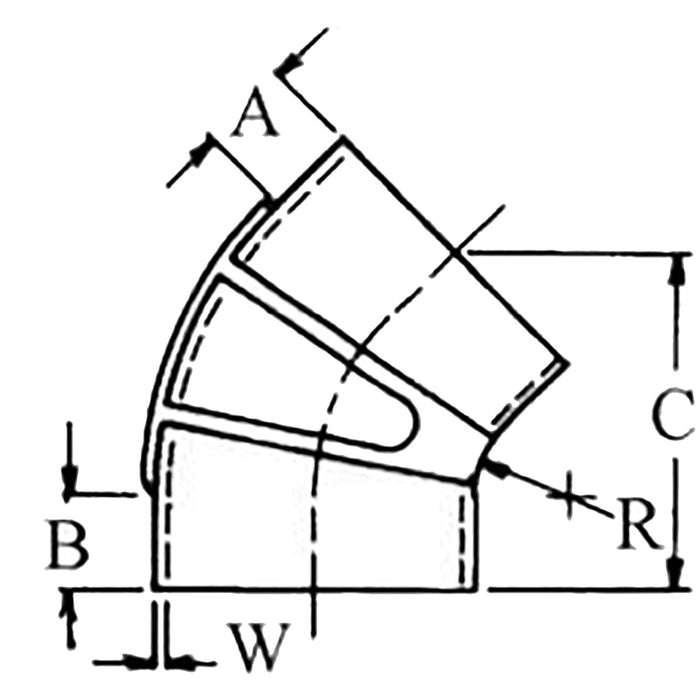

• Inner Diameter: (inch) 8 / (mm) 203


• Outer Diamter: (inch) 8.74" / (mm) 222.0


• A: (inch) 2.25 / (mm) 57.2


• B: (inch) 2.25 / (mm) 57.2


• C: (inch) 8.25 / (mm) 209.5


• W: (inch) 0.37 / (mm) 9.4


• Elbow Degree: 45 degrees


• Weight: (Lb/Ea) 4.3 / (Kg/Ea) 1.95
