Wichard Captive Pin Bow Shackle - Diameter 4mm - 5/32"

Captive Pin Bow Shackle - Diameter 4mm - 5/32"

Features:

• Captive pin bow shackle forged in grade 316L stainless steel


• The pin is connected to the body at all times even when opened


• The pin is locked into one of the indentations


• No risks of loosening due to vibrations


• Outstanding working and breaking loads


• Single-handed operation for more safety


• WLL: only for industrial applications (lifting i.e)


• CE marking and batch number

Applications:

• To be used when ample room is required


• Possibility to attach several lines or cables

Specifications:

• Materials 316 stainless steel grade


• Working load (lb) 700


• WLL (lb) 440


• Breaking load (lb) 2200


• Weight (lb) 0.022

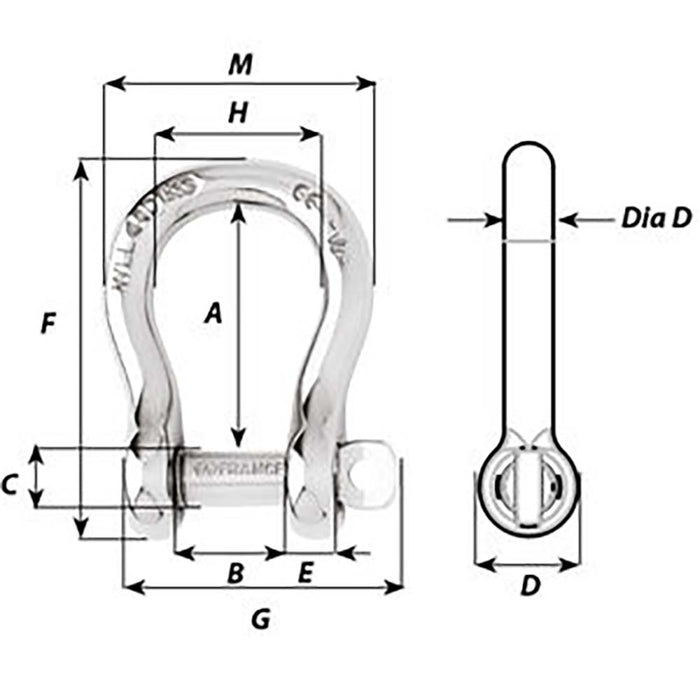

Dimensions (see 2nd image):

• A (inch) 45/64"


• B (inch) 5/16"


• C (inch) 13/64"


• D (inch) 23/64"


• D diameter (inch) 5/32"


• E (inch) 5/32"


• M (inch) 53/64"
