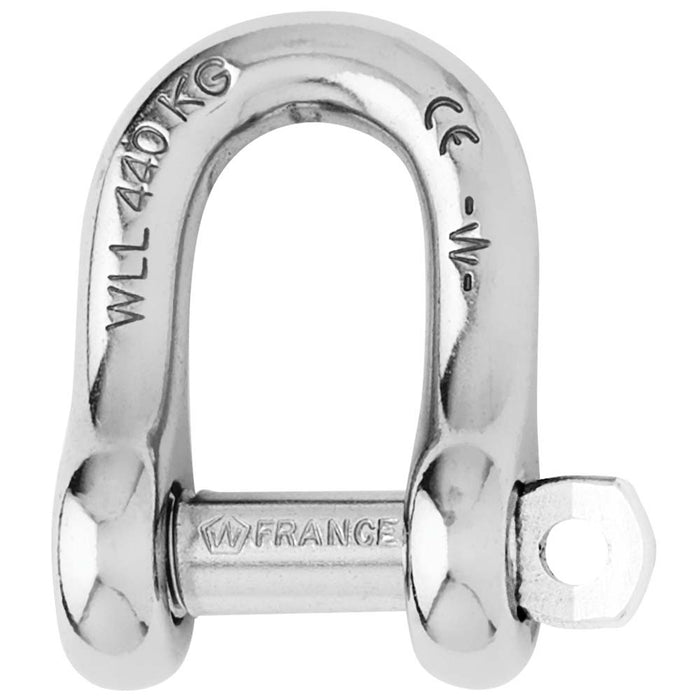

Wichard Captive Pin D Shackle - Diameter 12mm - 15/32"

Captive Pin D Shackle - Diameter 12mm - 15/32"

Features:

• Captive pin "D" shackle forged in grade 316L stainless steel


• The pin is connected to the body at all times even when opened


• The pin is locked into one of the indentations


• No risks of loosening due to vibrations


• Outstanding working and breaking loads

Applications:

• Standard applications of shackle


• Attachment applications: blocks, head...

Specifications:

• Materials 316 stainless steel grade


• Working load (lb) 4580


• WLL (lb) 3080


• Breaking load (lb) 15430


• Weight (lb) 0.414

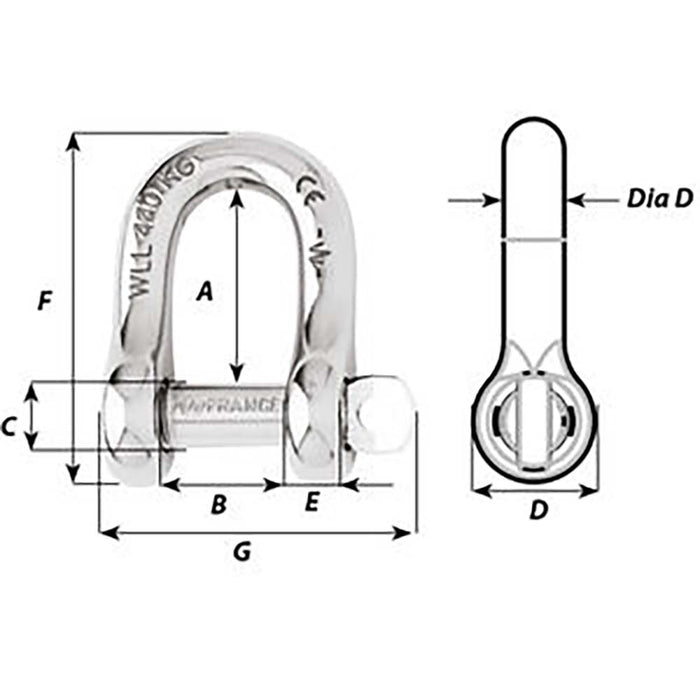

Dimensions (see 2nd image):

• A (inch) 1-17/32"


• B (inch) 15/16"


• C (inch) 33/64"


• D (inch) 15/16"


• D diameter (inch) 15/32"


• E (inch) 7/16"


• F (inch) 2-23/32"


• G (inch) 2-7/16"
