Wichard Captive Pin D Shackle - Diameter 5mm - 3/16"

Captive Pin D Shackle - Diameter 5mm - 3/16"

Features:

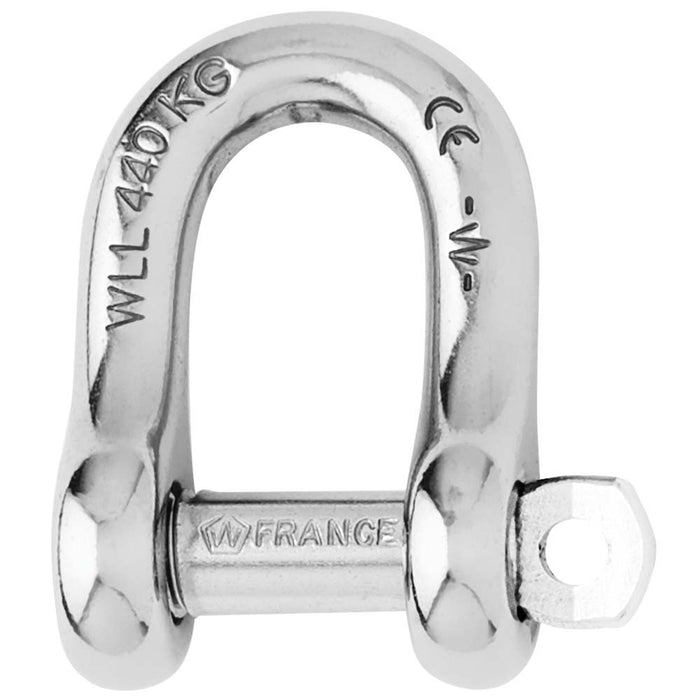

• Captive pin "D" shackle forged in grade 316L stainless steel


• The pin is connected to the body at all times even when opened


• The pin is locked into one of the indentations


• No risks of loosening due to vibrations


• Outstanding working and breaking loads

Applications:

• Standard applications of shackle


• Attachment applications: blocks, head...

Specifications:

• Materials 316 stainless steel grade


• Working load (lb) 1050


• WLL (lb) 660


• Breaking load (lb) 3300


• Weight (lb) 0.035

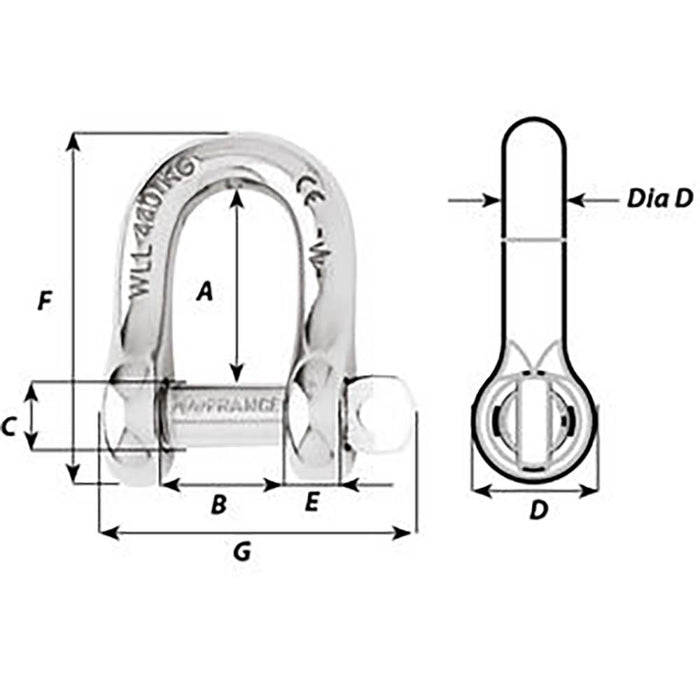

Dimensions (see 2nd image):

• A (inch) 5/8"


• B (inch) 25/64"


• C (inch) 15/64"


• D (inch) 7/16"


• D diameter (inch) 13/64"


• E (inch) 13/64"


• F (inch) 7/16"


• G (inch) 1-3/16"


• H (inch) 1-1/16"
