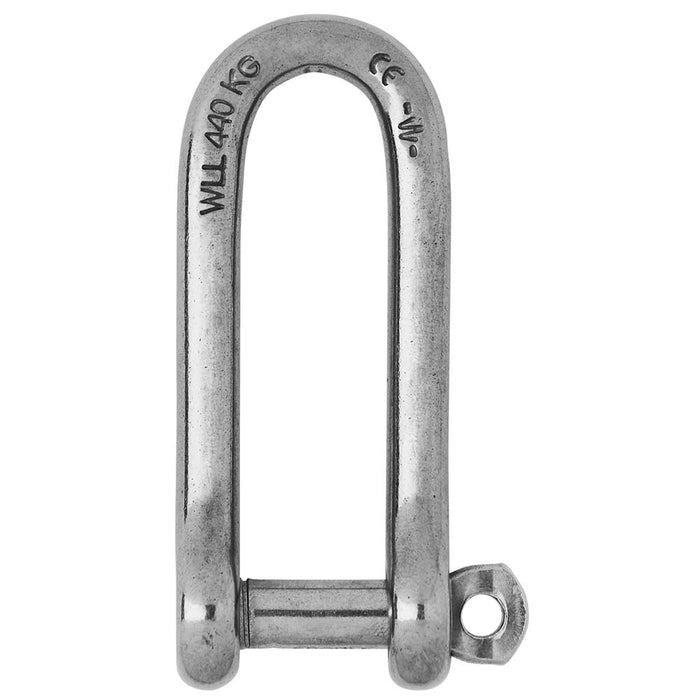

Wichard Captive Pin Long D Shackle - Diameter 4mm - 5/32"

Captive Pin Long D Shackle - Diameter 4mm - 5/32"

Features:

• Captive pin long "D" shackle forged in grade 316L stainless steel


• The pin is connected to the body at all times even when opened


• The pin is locked into one of the indentations


• No risks of loosening due to vibrations


• Outstanding working and breaking loads

Applications:

• Standard applications of shackle requiring more length


• Attachment applications: blocks, head...

Specifications:

• Materials 316 stainless steel grade


• Working load (lb) 700


• WLL (lb) 440


• Breaking load (lb) 2200


• Weight (lb) 0.026

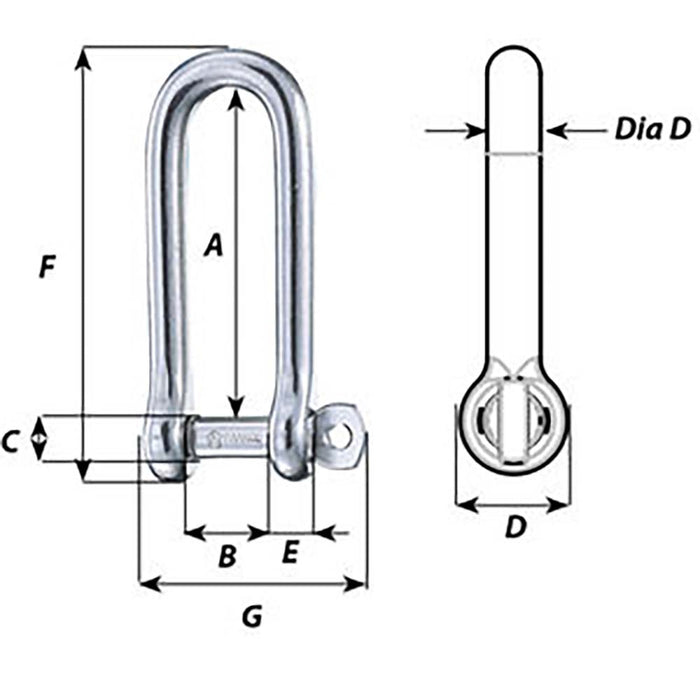

Dimensions (see 2nd image):

• A (inch) 1-7/32"


• B (inch) 5/16"


• C (inch) 13/64"


• D (inch) 23/64"


• D diameter (inch) 5/32"


• E (inch) 5/32"


• F (inch) 1-39/64"


• G (inch) 55/64"
