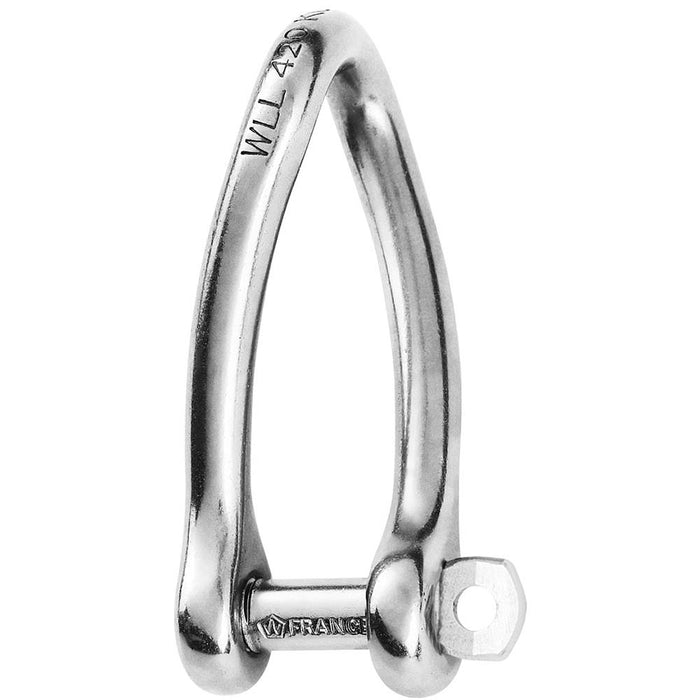

Wichard Captive Pin Twisted Shackle - Diameter 5mm - 3/16"

Captive Pin Twisted Shackle - Diameter 5mm - 3/16"

Features:

• Captive pin twisted shackle forged in grade 316L stainless steel


• The pin is connected to the body at all times even when opened


• The pin is locked into one of the indentations


• No risks of loosening due to vibrations


• Outstanding working and breaking loads


• Single-handed operation for more safety


• Part # 1422 is not suitable for lifting applications

Applications:

• Perfect for application where a 90 angle twist setup is required


• Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:

• Materials 316 stainless steel grade


• Working load (lb) 1050


• Breaking load (lb) 3300


• Weight (lb) 0.051

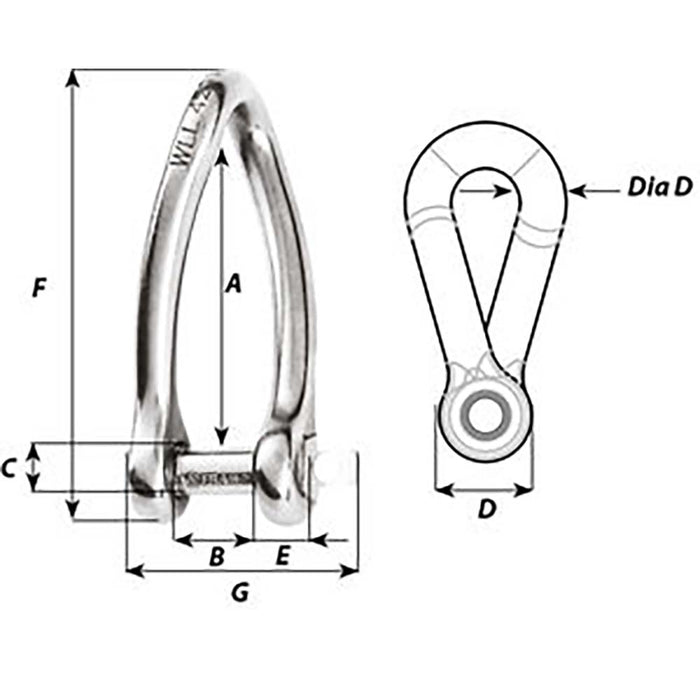

Dimensions (see 2nd image):

• A (inch) 1-29/64"


• B (inch) 25/64"


• C (inch) 15/64"


• D (inch) 7/16"


• D diameter (inch) 13/64"


• E (inch) 13/64"


• F (inch) 1-31/32"


• G (inch) 1-1/16"
