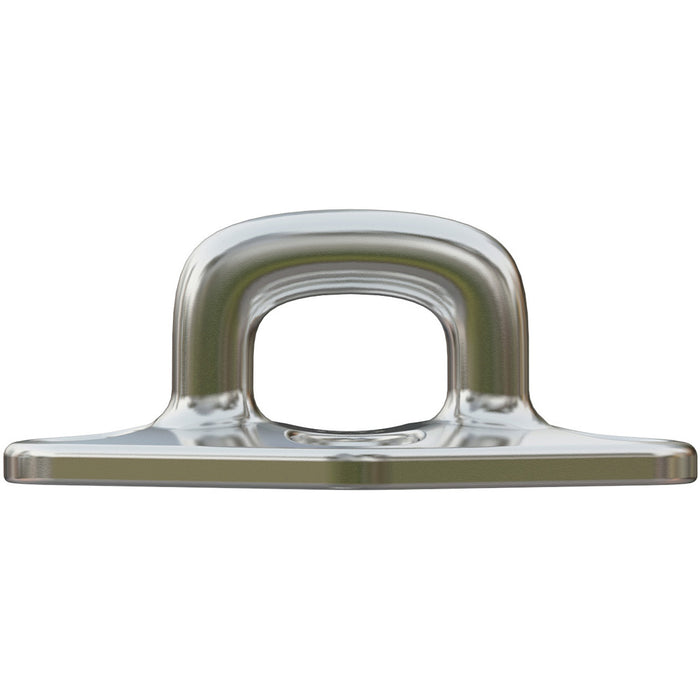

Wichard Diamond Pad Eye - Square - 79mm Length (3-7/64") - M6 Screw

Diamond Pad Eye - Square - 79mm Length (3-7/64") - M6 Screw

Features:

• Mechanical resistance versus corrosion resistance ratio


• Optimized dimensions


• For M6 screw

Applications:

• Mast foot blocks


• Reefing blocks


• Various fastenings

Specifications:

• Materials: Duplex stainless steel grade


• Working Load: (lb) 5950 / (kg) 2700


• Breaking Load: (lb) 16093.7 / (kg) 7300


• Weight: (lb) 0.32 / (g) 145


• W.L 1 (90 degrees): (lb) 6393.4 / (kg) 2900


• W.L 2 (45 degrees): (lb) 5732 / (kg) 2600


• W.L 3 (0 degrees): (lb) 5291 / (kg) 2400


• B.L 1 (90 degrees): (lb) 16093.7 / (kg) 7300


• B.L 2 (45 degrees): (lb) 15211.9 / (kg) 6900


• B.L 3 (0 degrees): (lb) 13889.1 / (kg) 6300

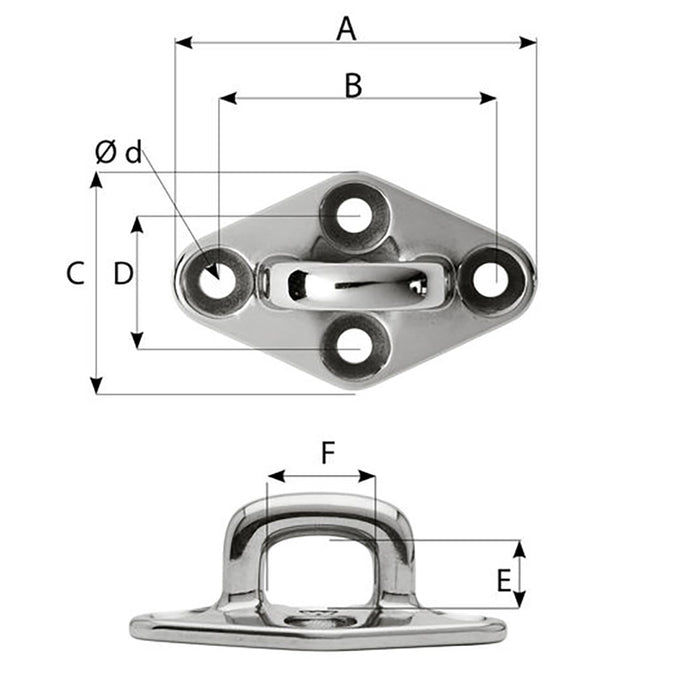

Dimensions:

• A: (inch) 3 7/64" / (mm) 79


• B: (inch) 2 23/64" / (mm) 60


• C: (inch) 1 31/32" / (mm) 50


• D: (inch) 1 17/64" / (mm) 32


• E: (inch) 39/64" / (mm) 15.5


• F: (inch) 55/64" / (mm) 22

Caption:

• Working Load (WL): For nautical applications


• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
