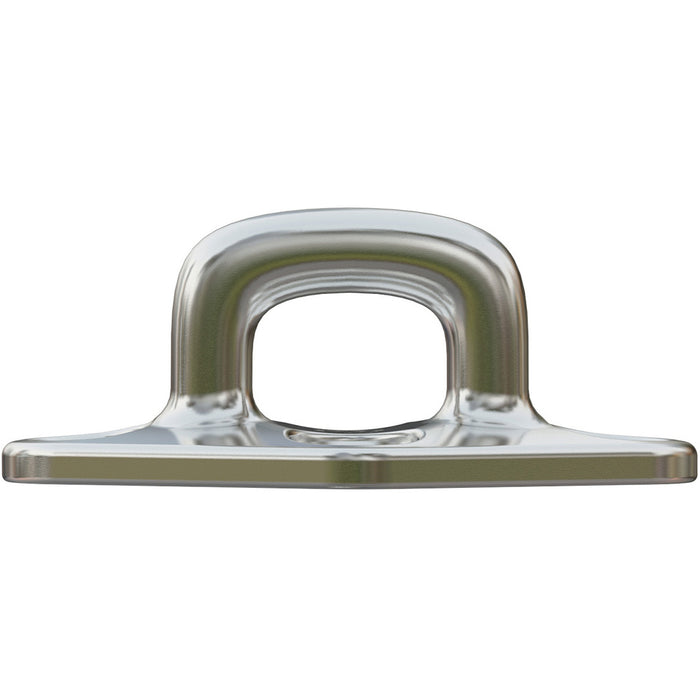

Wichard Diamond Pad Eye - Square - 98mm Length (3-55/64") - M8 Screw

Diamond Pad Eye - Square - 98mm Length (3-55/64") - M8 Screw

Features:

• Mechanical resistance versus corrosion resistance ratio


• Optimized dimensions


• For M8 screw

Applications:

• Mast foot blocks


• Reefing blocks


• Various fastenings

Specifications:

• Materials: Duplex stainless steel grade


• Working Load: (lb) 9479.8 / (kg) 4300


• Breaking Load: (lb) 25573.6 / (kg) 11600


• Weight: (lb) 0.562 / (g) 255


• W.L 1 (90 degrees): (lb) 9479.8 / (kg) 4300


• W.L 2 (45 degrees): (lb) 9479.8 / (kg) 4300


• W.L 3 (0 degrees): (lb) 9038.9 / (kg) 4100


• B.L 1 (90 degrees): (lb) 25573.6 / (kg) 11600


• B.L 2 (45 degrees): (lb) 25573.6 / (kg) 11600


• B.L 3 (0 degrees): (lb) 24250.8 / (kg) 11000

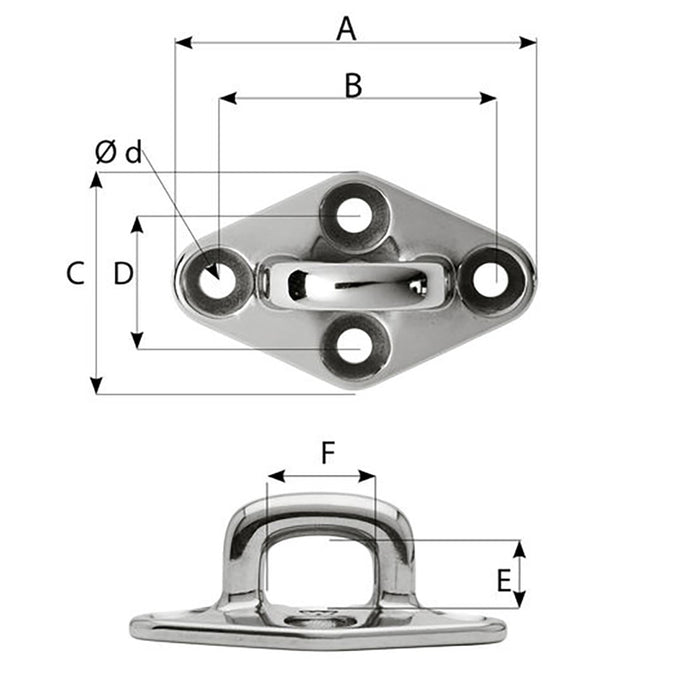

Dimensions:

• A: (inch) 3 55/64" / (mm) 98


• B: (inch) 2 7/8" / (mm) 73


• C: (inch) 2 21/64" / (mm) 59


• D: (inch) 1 3/8" / (mm) 35


• E: (inch) 49/64" / (mm) 19.5


• F: (inch) 1 1/16" / (mm) 27

Caption:

• Working Load (WL): For nautical applications


• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
