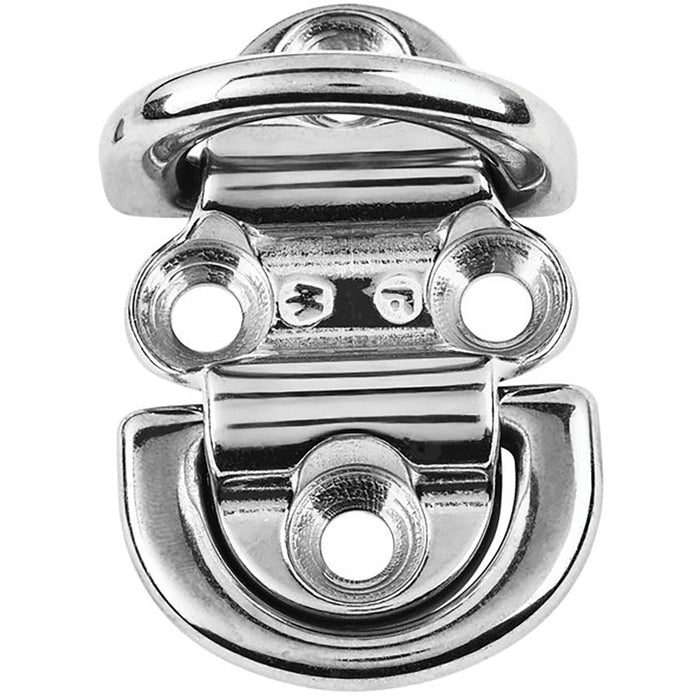

Wichard Double Folding Pad Eye - 6mm Diameter - 15/64"

Double Folding Pad Eye - 6mm Diameter - 15/64"

Features:

• Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load


• Perfect solution attachment (stay, blocks, jib tack point)


• Possibility to attach several stays


• Modern and optimized design to suit the aesthetics of modern boats


• They can be folded down to minimize the risk of injuries


• The silicon pad eliminates noise and unpleasant vibrations

Applications:

• For any fastening/attachment application


• Allows to attach several shrouds

Specifications:

• Materials: 316L stainless steel grade


• Working load: (lb) 3170 / (kg) 1440


• Breaking load; (lb) 5510 / (kg) 2500


• Weight: (lb) 0.278 / (g) 126

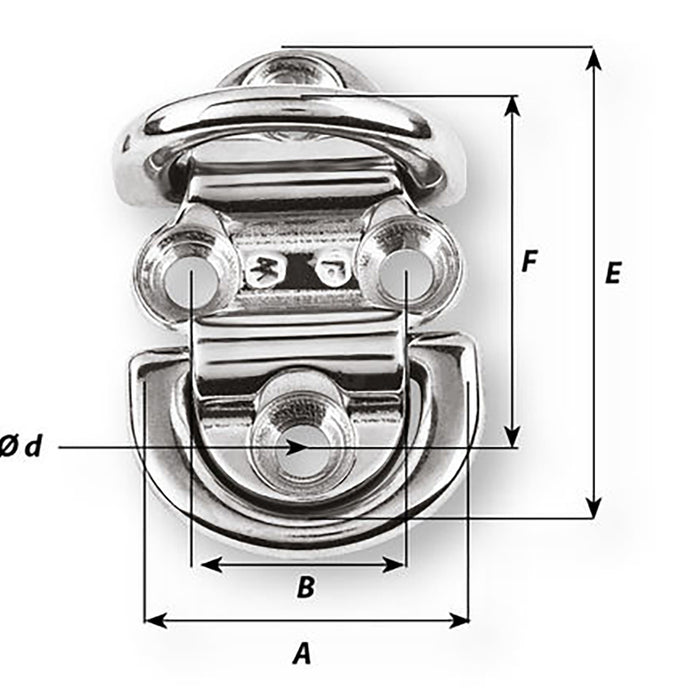

Dimensions:

• A: (inch) 1 49/64" / (mm) 45


• B: (inch) 1 1/16" / (mm) 27


• C: (inch) 35/64" / (mm) 14


• d diameter: (inch) 1/4" / (mm) 6.4


• D diameter: (inch) 15/64" / (mm) 6


• E: (inch) 2 61/64" / (mm) 75


• F: (inch) 2 21/64" / mm) 59

Caption:

• Working Load (WL): For nautical applications


• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
