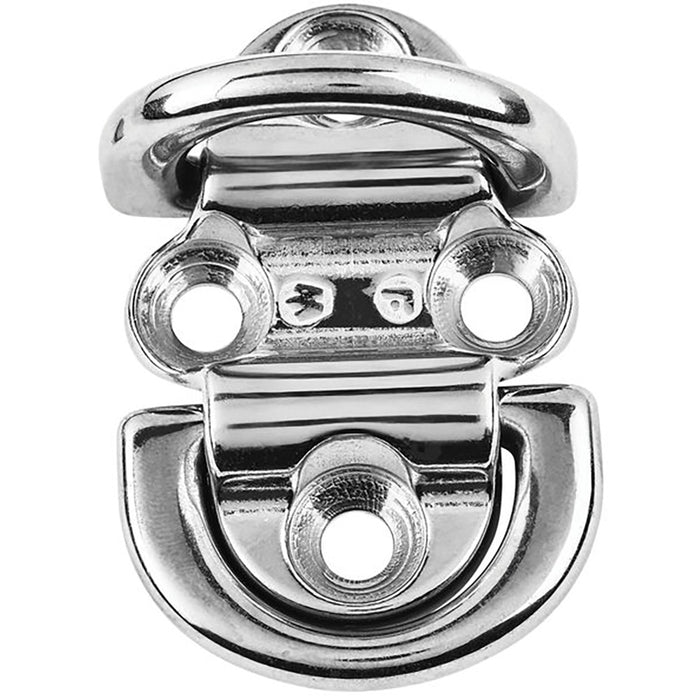

Wichard Double Folding Pad Eye - 8mm Diameter - 5/16"

Double Folding Pad Eye - 8mm Diameter - 5/16"

Features:

• Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load


• Perfect solution attachment (stay, blocks, jib tack point)


• Possibility to attach several stays


• Modern and optimized design to suit the aesthetics of modern boats


• They can be folded down to minimize the risk of injuries


• The silicon pad eliminates noise and unpleasant vibrations

Applications:

• For any fastening/attachment application


• Allows to attach several shrouds

Specifications:

• Materials: 316L stainless steel grade


• Working load: (lb) 5290 / (kg) 2400


• Breaking load: (lb) 9470 / (kg) 4300


• Weight: (lb) 0.556 / (g) 252

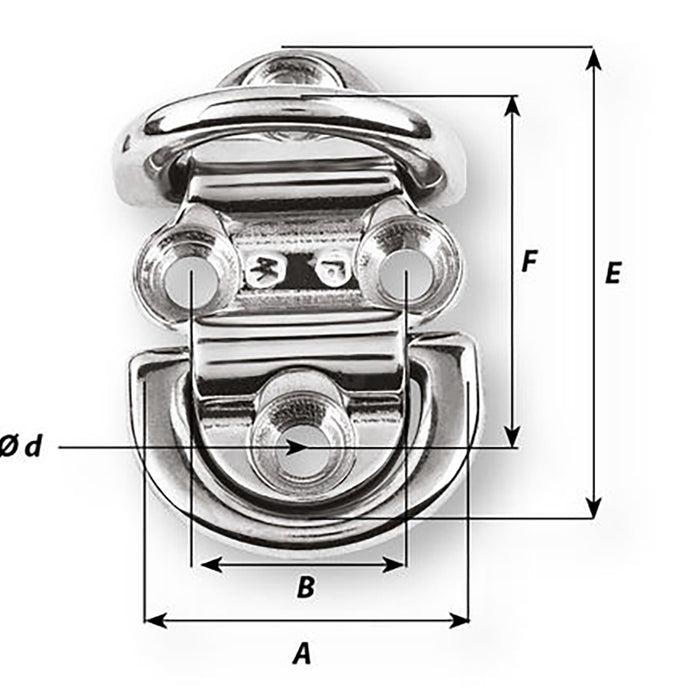

Dimensions:

• A: (inch) 2 21/64" / (mm) 59


• B: (inch) 1 3/8" / (mm) 35


• C: (inch) 43/64" / (mm) 17


• d diameter: (inch) 21/64" / (mm) 8.5


• D diameter: (inch) 5/16" / (mm) 8


• E: (inch) 3 3/16" / (mm) 81


• F: (inch) 2 21/64" / (mm) 59

Caption:

• Working Load (WL): For nautical applications


• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
