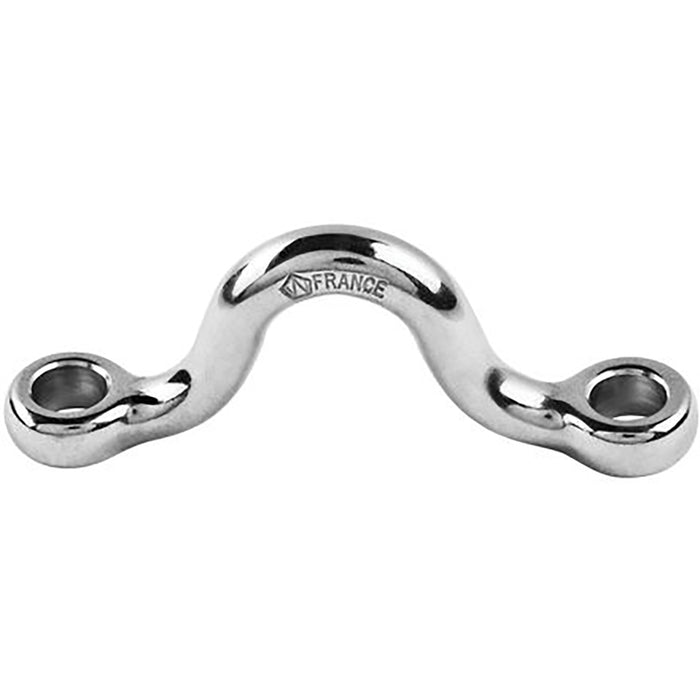

Eye Strap - 5mm Diameter - 13/64" - 37.5mm Spacing - 1-15/32"
Features:
- Complete range of drop-forged saddles with high-quality stainless steel (316L)
- Outstanding strength
- The round shape reduces the wear of the components connected to them (straps, ropes...)
Applications:
- Fastening applications
- Attachment of straps cordage
Specifications:
- Materials: 316L stainless steel grade
- Breaking load: (lb) 3960 / (kg) 1800
- Weight: (lb) 0.02 / (g) 9

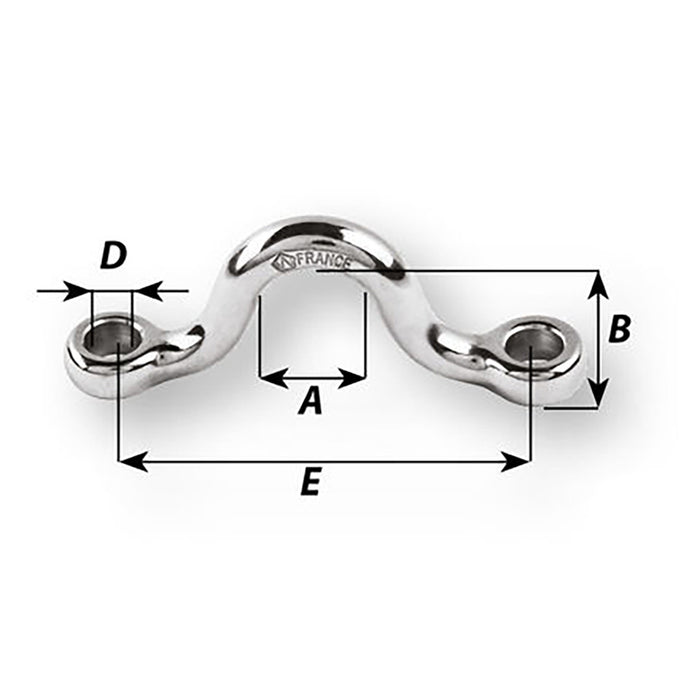

Dimensions:
- A: (inch) 25/64" / (mm) 10
- B: (inch) 35/64" / (mm) 14
- D diameter: (inch) 13/64" / (mm) 5
- E: (inch) 1 15/32" / (mm) 37.5
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
