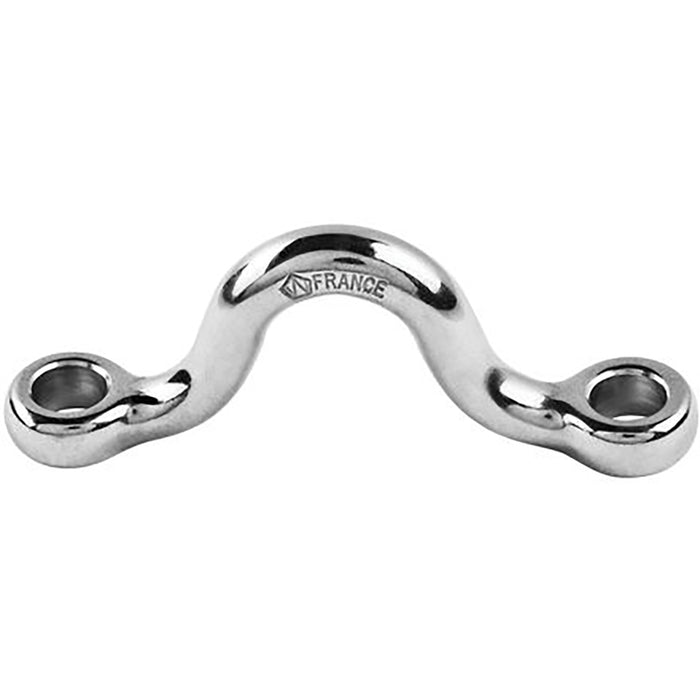

Wichard Eye Strap - 6mm Diameter - 15/64"- 45mm Spacing - 1-49/64"

Eye Strap - 6mm Diameter - 15/64"- 45mm Spacing - 1-49/64"

Features:

• Complete range of drop-forged saddles with high-quality stainless steel (316L)


• Outstanding strength


• The round shape reduces the wear of the components connected to them (straps, ropes...)



Applications:

• Fastening applications


• Attachment of straps cordage

Specifications:

• Materials: 316L stainless steel grade


• Breaking load: (lb) 5290 / (kg) 2400


• Weight: (lb) 0.035 / (g) 16

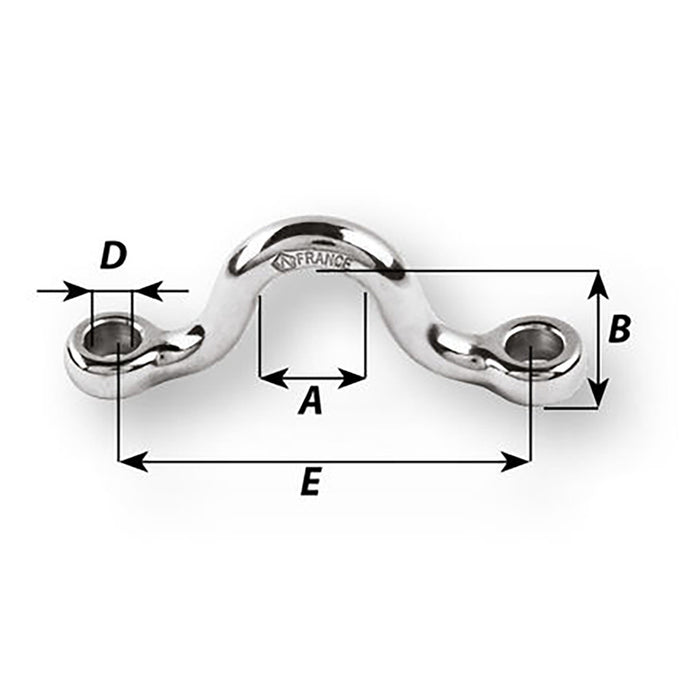

Dimensions:

• A: (inch) 15/32" / (mm) 12


• B: (inch) 5/8" / (mm) 16


• D diameter: (inch) 15/64" / (mm) 6


• E: (inch) 1 49/64" / (mm) 45

Caption:

• Working Load (WL): For nautical applications


• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
