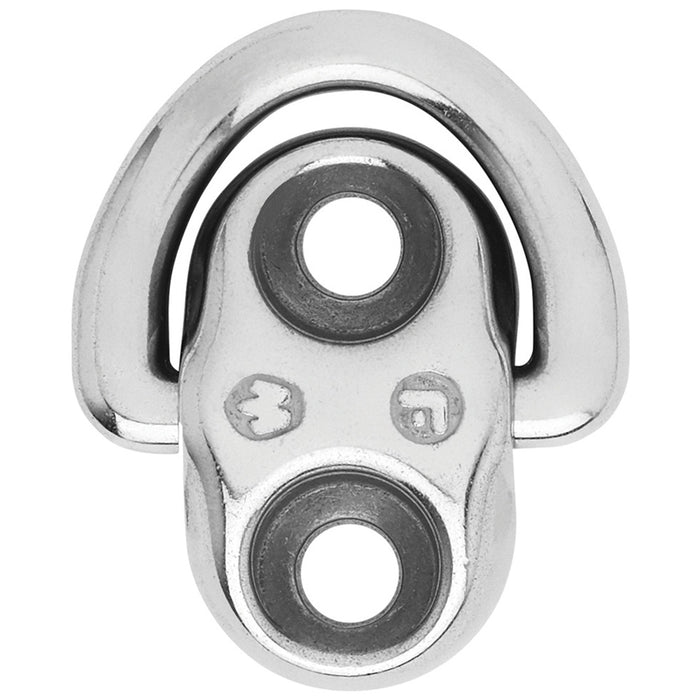

Wichard Folding Pad Eye - 6mm Diameter (15/64") - 2 Fixed Holes

Folding Pad Eye - 6mm Diameter (15/64") - 2 Fixed Holes

Features:

• They are 100% safe and highly resistant to corrosion


• Fully drop-forged product with outstanding working and breaking loads regardless of the angle of the load


• Modern and optimized design to suit the aesthetics of modern boats


• They can be folded down to minimize the risk of injuries


• The silicon pad eliminates moist and unpleasant vibrations


• Modern design

Applications:

• Fastening applications (stay, blocks, jib tack point, lifeline, etc...)

Specifications:

• Materials: 316L stainless steel grade


• Working Load: (lb) 1650 / (kg) 750


• Breaking Load: (lb) 3520 / (kg) 1600


• Weight: (lb) 0.123 / (g) 56

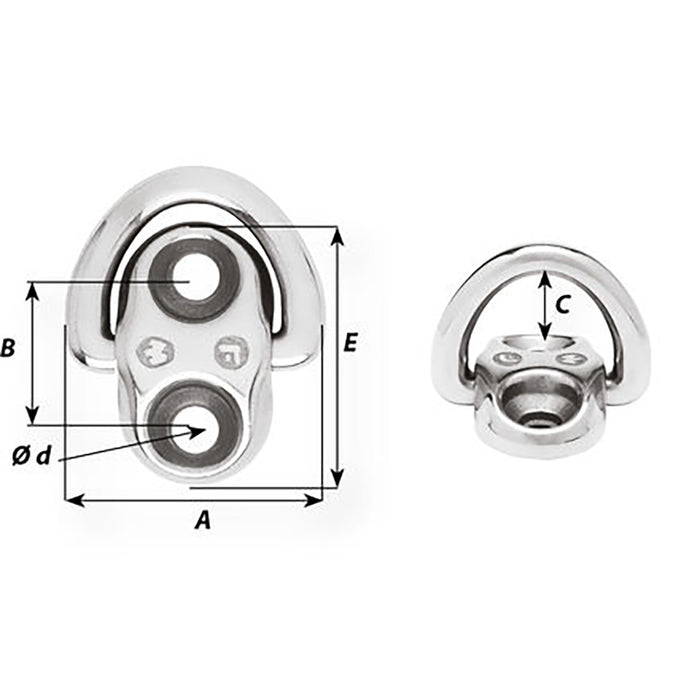

Dimensions:

• A: (inch) 1 37/64" / (mm) 40


• B: (inch) 59/64" / (mm) 23.4


• C: (inch) 19/32" / (mm) 15


• d diameter: (inch) 9/32" / (mm) 7


• D diameter: (inch) 15/64" / (mm) 6


• E: (inch) 1 37/64" / (mm) 40

Caption:

• Working Load (WL): For nautical applications


• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
