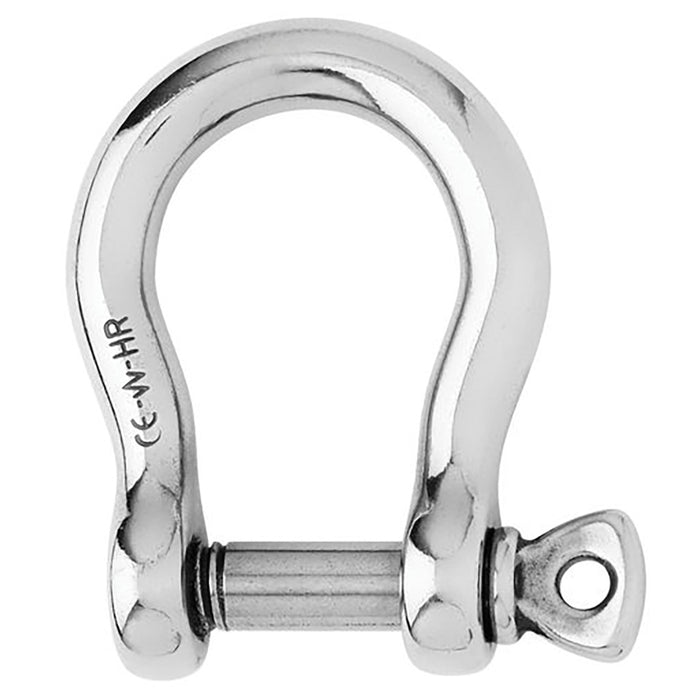

Wichard HR Bow Shackle - 10mm Pin Diameter

HR Bow Shackle - 10mm Pin Diameter

Features:

• Forged bow shackle in HR stainless steel grade (17,4 PH)


• Outstanding working and breaking load


• A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel


• WLL: only for industrial applications (lifting i.e)


• CE marking

Applications:

• Applications requesting high loads


• To be used when ample room is required


• Possibility to attach several lines or cables


• Do not use for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade


• Working load: (lb) 5820 / (kg) 2640


• WLL: (lb) 2640 / (kg) 1200


• Breaking load: (lb) 13220 / (kg) 6000


• Weight: (lb) 0.3 / (g) 136

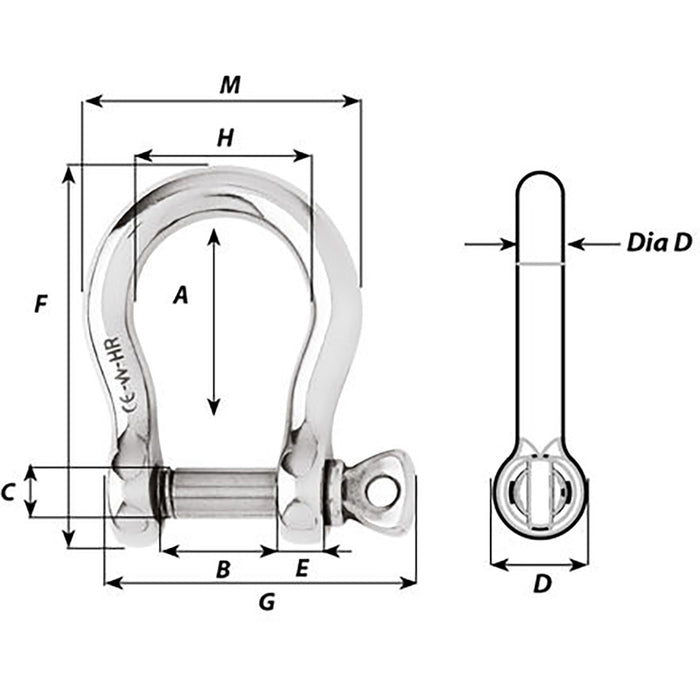

Dimensions:

• A: (inch) 1 27/32" / (mm) 47


• B: (inch) 55/64" / (mm) 22


• C: (inch) 25/64" / (mm) 10


• D: (inch) 25/32" / (mm) 20


• D diameter: (inch) 15/32" / (mm) 12


• E: (inch) 23/64" / (mm) 9


• M: (inch) 2 3/64" / (mm) 52

Caption:

• Working Load (WL): For nautical applications


• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5


• High Resistance (HR)

*Sold as an Individual
