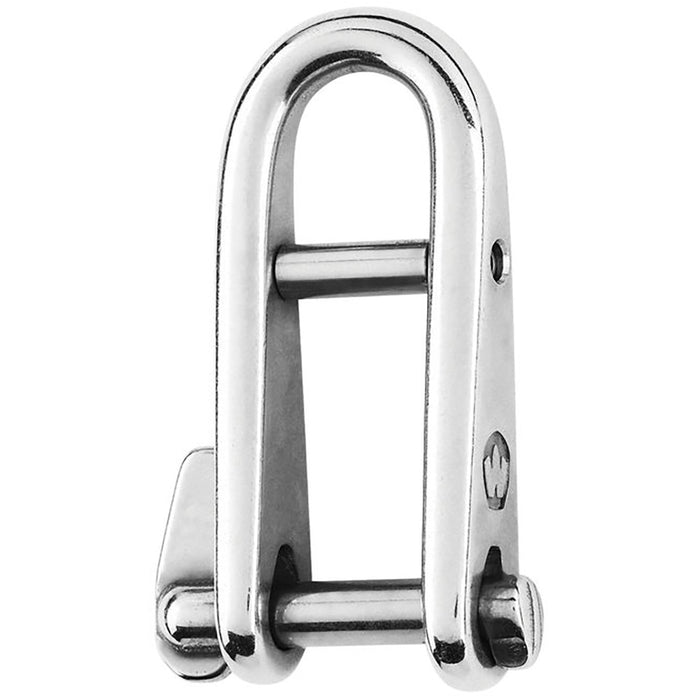

Wichard HR Key Pin Shackle With Bar - 8mm Pin Diameter

HR Key Pin Shackle With Bar - 8mm Pin Diameter

Features:

• Forged D shackle in HR stainless steel grade (17,4 PH)


• Outstanding working and breaking load


• An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel


• WLL: only for industrial applications (lifting i.e)


• CE marking

Applications:

• Applications requesting high loads


• Perfect product for halyards or applications requiring to opening/closing the shackle often


• Do not use it for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade


• Working load: (lb) 2110 / (kg) 960


• Breaking load: (lb) 7710 / (kg) 3500


• Weight: (lb) 0.271 / (g) 123

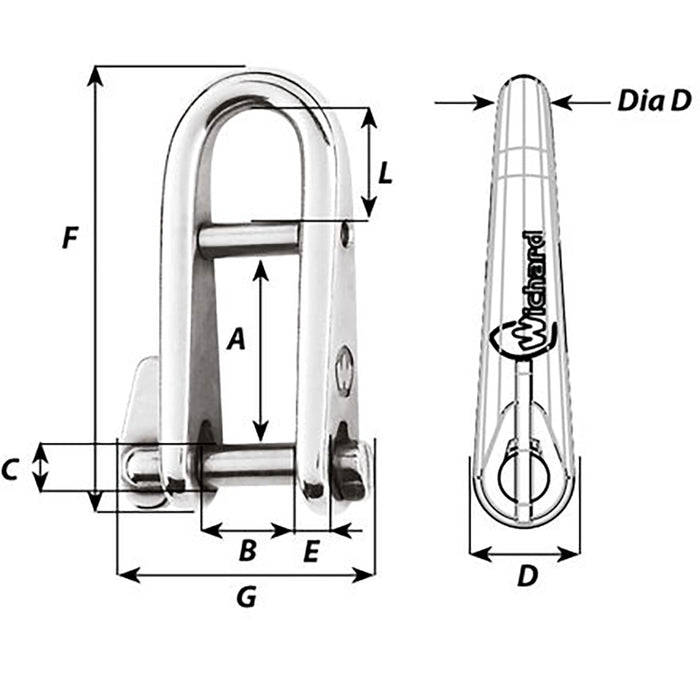

Dimensions:

• A: (inch) 2 21/64" / (mm) 59


• B: (inch) 53/64" / (mm) 21


• C: (inch) 5/16" / (mm) 8


• D: (inch) 43/64" / (mm) 17


• E: (inch) 15/64" / (mm) 6


• F: (inch) 3 7/64" / (mm) 79


• G: (inch) 1 57/64" / (mm) 48


• L: (inch) 25/32" / (mm) 20

Caption:

• Working Load (WL): For nautical applications


• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5


• High Resistance (HR)

*Sold as an Individual
