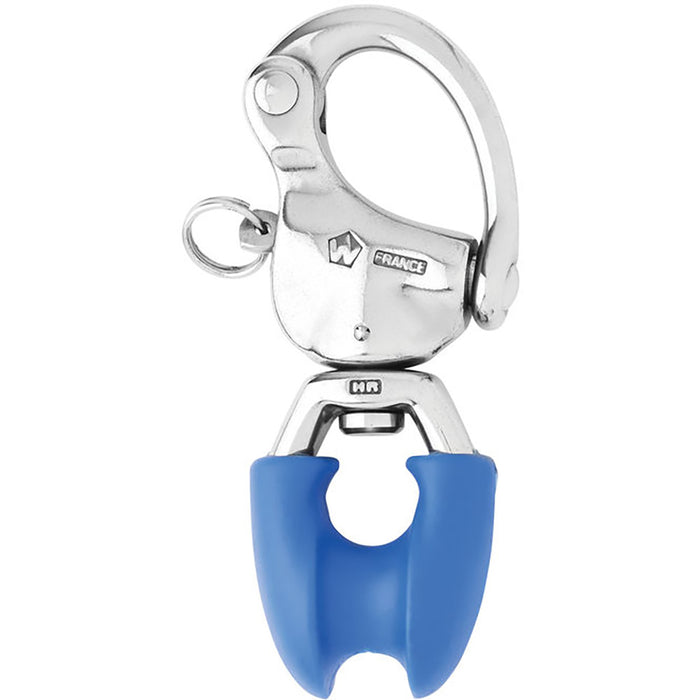

Wichard HR Snap Shackle With Thimble Eye - 110mm Length - 4-21/64"

HR Snap Shackle With Thimble Eye - 110mm Length - 4-21/64"

Features:

• HR Forged snap shackle (Grade 17.4 PH stainless steel) with thimble eye


• Allows to splice the halyard directly onto the snap shackle (without using a thimble)


• Avoids the wear of the ropes


• Free rotation of the snap shackle thanks to the swivel eye


• The plunger pin is set captive into the hook and cannot become detached


• Excellent working and breaking loads > Easy to open by pulling the plunger pin (possible to attach a lanyard)


Applications:

• Snap shackle applications


• Allows to splice the halyard


• Applications requiring a free rotation of the snap shackle (for a better sail orientation)

Specifications:

• Materials: HR 17.4 PH stainless steel grade


• Working load: (lb) 2820 / (kg) 1280


• Breaking load: (lb) 5290 / (kg) 2400

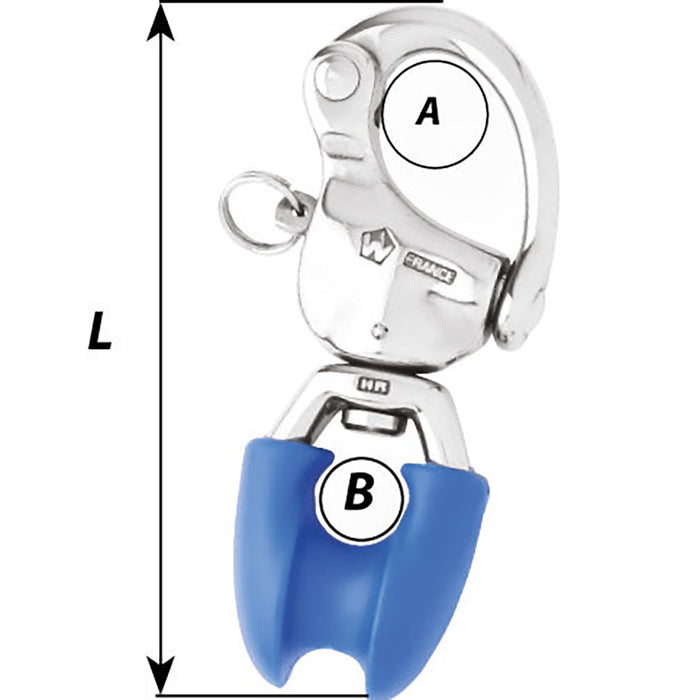

Dimensions:

• A: (inch) 53/64" / (mm) 110


• B: (inch) 35/64" / (mm) 21


• Length: (inch) 4 21/64" / (mm) 14

Caption:

• Working Load (WL): For nautical applications


• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5


• High Resistance (HR)

*Sold as an Individual
