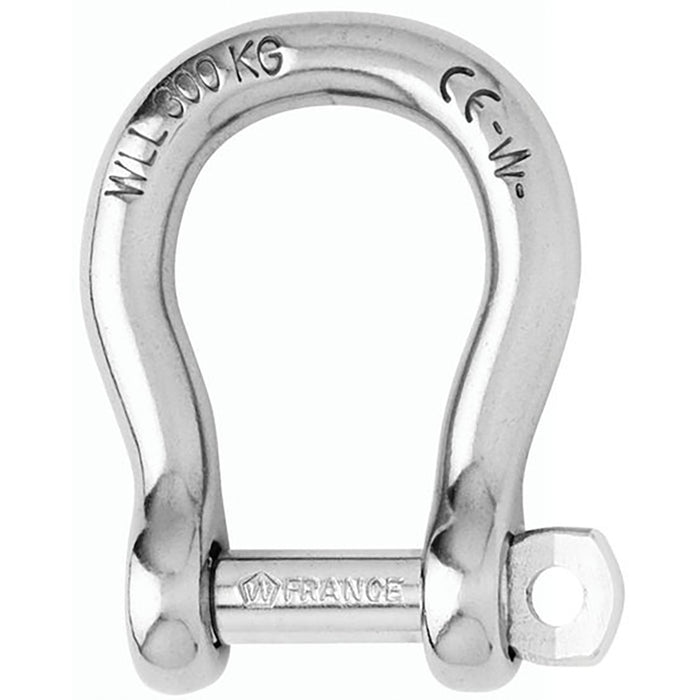

Wichard Not Self-Locking Bow Shackle - 16mm Diameter - 5/8"

Not Self-Locking Bow Shackle - 16mm Diameter - 5/8"

Features:

• Bow shackle forged in grade 316L stainless steel


• The pin is locked into one of the indentations


• No risks of loosening due to vibrations


• Outstanding working and breaking loads


• WLL: only for industrial applications (lifting i.e)


• CE marking


• Part # 01247 is not self-locking


Applications:

• To be used when ample room is required


• Possibility to attach several lines or cables

Specifications:

• Materials: 316 stainless steel grade


• Working load: (lb) 7050 / (kg) 3200


• WLL: (lb) 4400 / (kg) 2000


• Breaking load: (lb) 22040 / (kg) 10000


• Weight: (lb) 1.19 / (g) 540

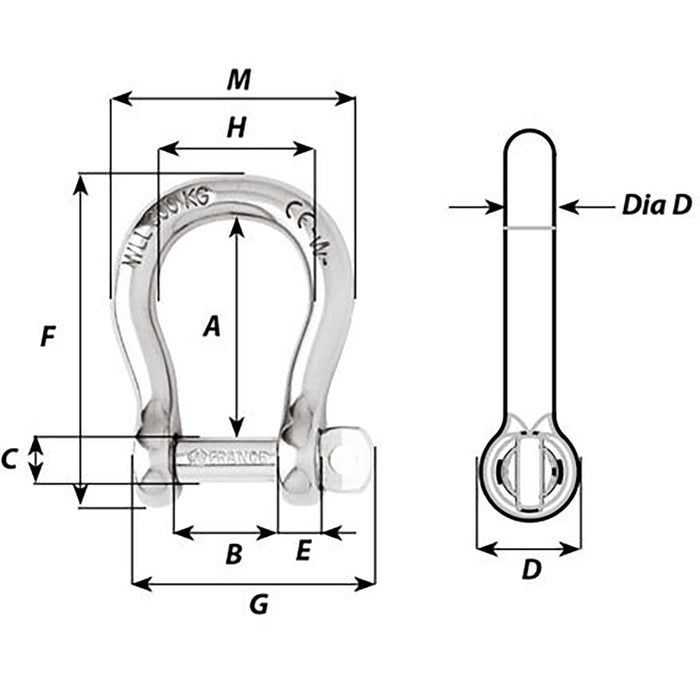

Dimensions:

• A: (inch) 2 3/4" / (mm) 70


• B: (inch) 1 17/64" / (mm) 32


• C: (inch) 35/64" / (mm) 14


• D: (inch) 1 17/64" / (mm) 14


• D diameter: (inch) 5/8" / (mm) 16


• E: (inch) 19/32" / (mm) 15


• M: (inch) 3 11/32" / (mm) 85

Caption:

• Working Load (WL): For nautical applications


• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual
