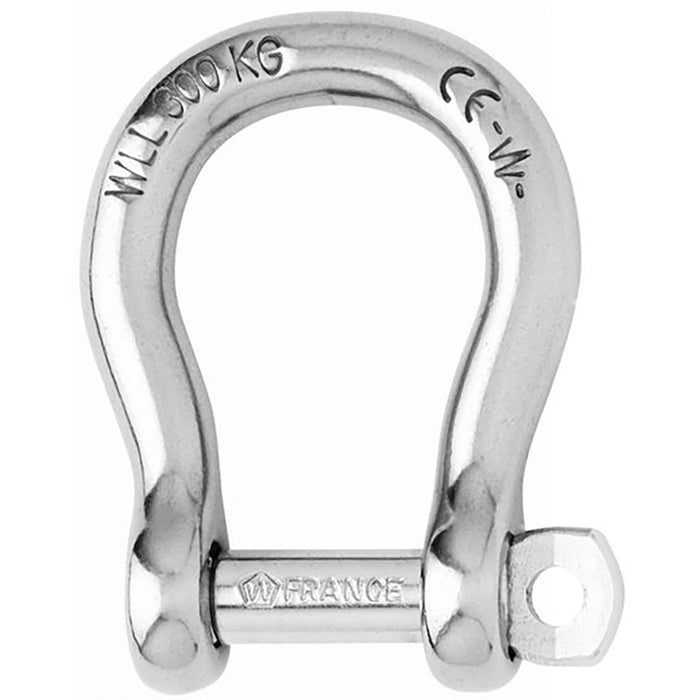

Wichard Not Self-Locking Bow Shackle - 20mm Diameter - 25/32"

Not Self-Locking Bow Shackle - 20mm Diameter - 25/32"

Features:

• Bow shackle forged in grade 316L stainless steel


• The pin is locked into one of the indentations


• No risks of loosening due to vibrations


• Outstanding working and breaking loads


• WLL: only for industrial applications (lifting i.e)


• CE marking


• Part # 01248 is not self-locking

Applications:

• To be used when ample room is required


• Possibility to attach several lines or cables


Specifications:

• Materials: 316 stainless steel grade


• Working load: (lb) 9920 / (kg) 4500


• WLL: (lb) 6610 / (kg) 3000


• Breaking load: (lb) 33060 / (kg) 15000


• Weight: (lb) 2.328 / (kg) 1.056

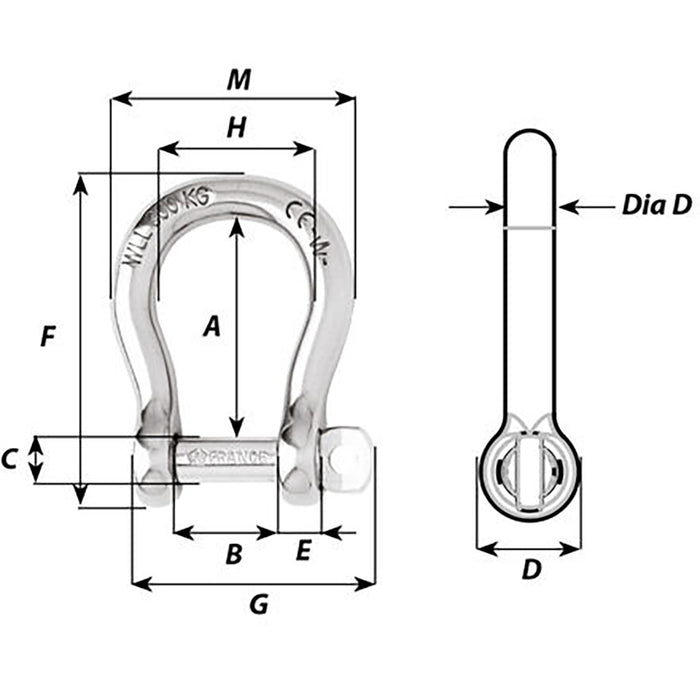

Dimensions:

• A: (inch) 3 5/32" / (mm) 80


• B: (inch) 1 37/64" / (mm) 40


• C: (inch) 25/32" / (mm) 20


• D: (inch) 1 37/64" / (mm) 40


• D diameter: (inch) 25/32" / (mm) 20


• E: (inch) 45/64" / (mm) 18


• M: (inch) 3 15/16" / (mm) 100

Caption:

• Working Load (WL): For nautical applications


• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual
