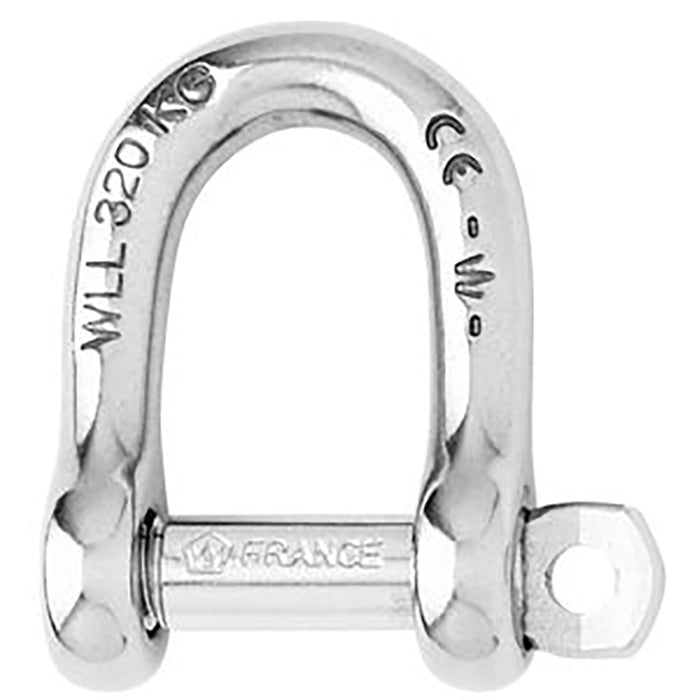

Wichard Not Self-Locking D Shackle - 14mm Diameter - 9/16"

Not Self-Locking D Shackle - 14mm Diameter - 9/16"

Features:

• D shackle forged in grade 316L stainless steel


• The pin is locked into one of the indentations


• No risks of loosening due to vibrations


• Outstanding working and breaking loads


• WLL: only for industrial applications (lifting i.e)


• CE marking


• Part #01207 is not a self-locking D shackle

Applications:

• Standard applications of the shackle


• Attachment applications: blocks, head

Specifications:

• Materials: 316 stainless steel grade


• Working load: (lb) 5290 / (kg) 2400


• WLL: (lb) 3520 / (kg) 1600


• Breaking load: (lb) 17630 / (kg) 8000


• Weight: (lb) 0.688 / (g) 312

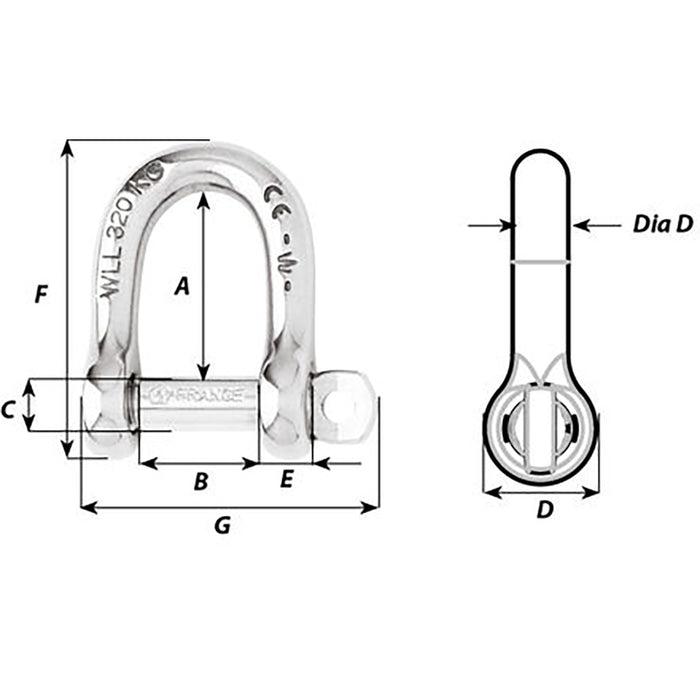

Dimensions:

• A: (inch) 1 27/32" / (mm) 47


• B: (inch) 1 7/64" / (mm) 28


• C: (inch) 35/64" / (mm) 14


• D: (inch) 1 7/64" / (mm) 28


• D diameter: (inch) 35/64" / (mm) 14


• E: (inch) 33/64" / (mm) 13


• F: (inch) 3 15/64" / (mm) 82


• G: (inch) 3 5/64" / (mm) 78

Caption:

• Working Load (WL): For nautical applications


• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual
