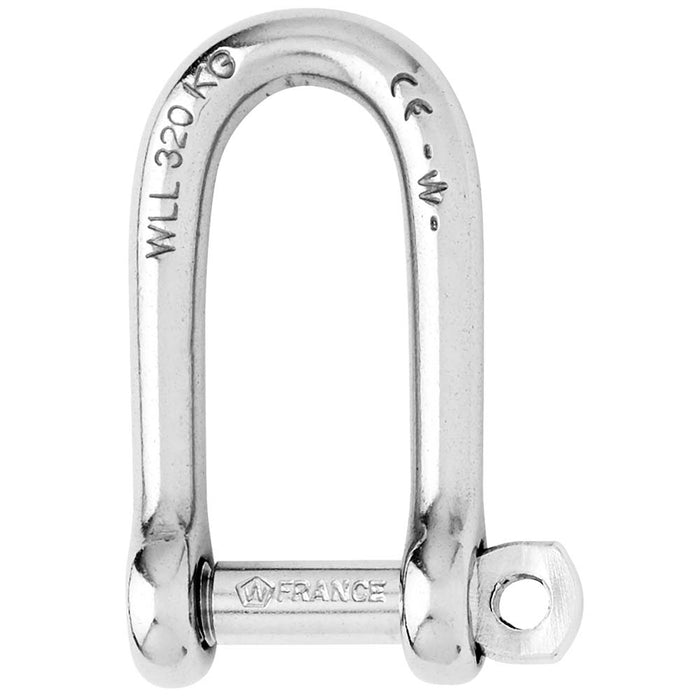

Wichard Self-Locking Long D Shackle - Diameter 4mm - 5/32"
Sold out
Original price
$17.75
-
Original price
$17.75
Original price
$17.75
$17.75
-
$17.75
Current price
$17.75
Availability:
Out of stock
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Self-Locking Long D Shackle - Diameter 4mm - 5/32"
Features:
- Self-locking long shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications
- CE Marking and batch number
Applications:
- Standard applications of shackle requiring more length
- Attachment applications: blocks, head
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 700
- WLL (lb) 300
- Breaking load (lb) 1540
- Weight (lb) 0.018

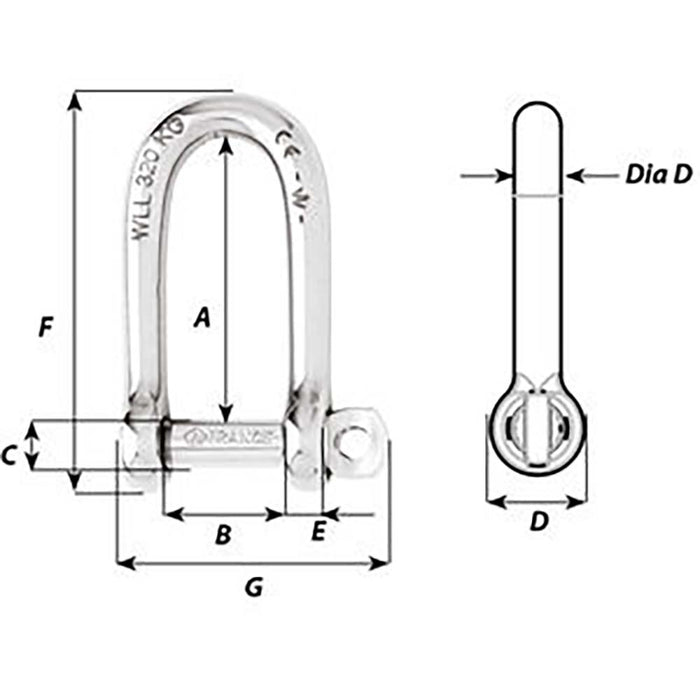

Dimensions (see 2nd image):
- A (inch) 55/64"
- B (inch) 5/16"
- C (inch) 5/32"
- D (inch) 5/16"
- D diameter (inch) 5/32"
- E (inch) 5/32"
- F (inch) 1-17/64"
- G (inch) 53/64"
