Wichard Self-Locking Twisted Shackle - Diameter 8mm - 5/16"
Original price
$39.35
-
Original price
$39.35
Original price
$39.35
$39.35
-
$39.35
Current price
$39.35
Availability:
Only 3 left!
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

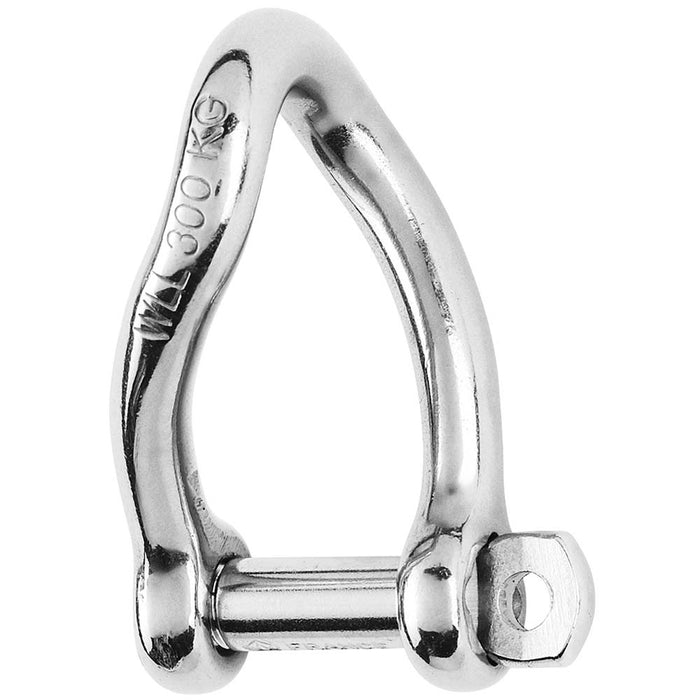

Self-Locking Twisted Shackle - Diameter 8mm - 5/16"
Features:
- Self-locking twisted shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Perfect for application where a 90 angle twist setup is required
- Often used to attach an unarticulated part (block on a rail) or on purchases
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 2200
- Breaking load (lb) 6610
- Weight (lb) 0.148

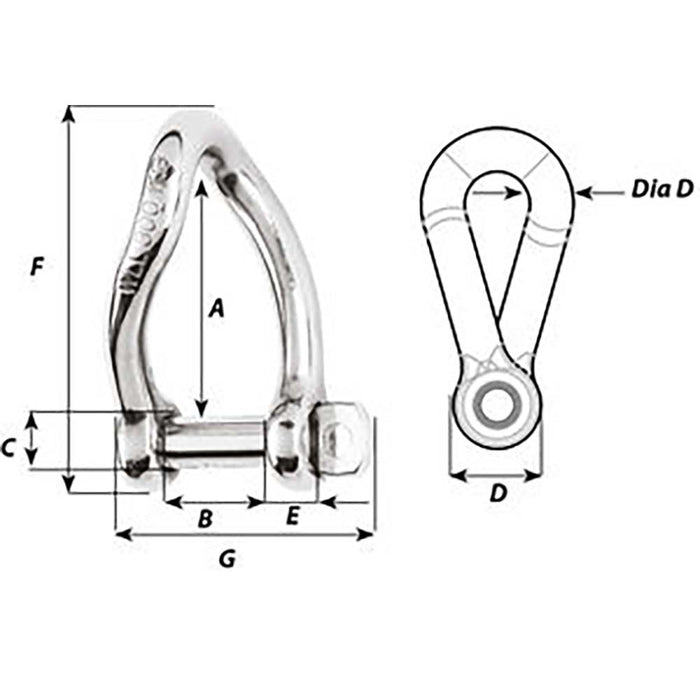

Dimensions (see 2nd image):
- A (inch)1-37/64"
- B (inch) 5/8"
- C (inch) 5/16"
- D (inch) 5/8"
- D diameter (inch) 5/16"
- E (inch) 9/32"
- F (inch) 2-23/64"
