Raymarine RV-320 Plastic Thru-Hull Transducer Pack w/20 Deadrise Compensation

RV-320 Plastic Thru-Hull Transducer Pack with 20 Deadrise Compensation

Designed for inboard or outboard boats, the RV-320 Plastic Through Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D sonar.

The RV-320 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVision, SideVision, high frequency CHIRP fish targeting and RealVision 3D sonar inside. The transducer system has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. Youll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-320 system also has a built-in fast response water temperature sensor for quick, accurate readings.

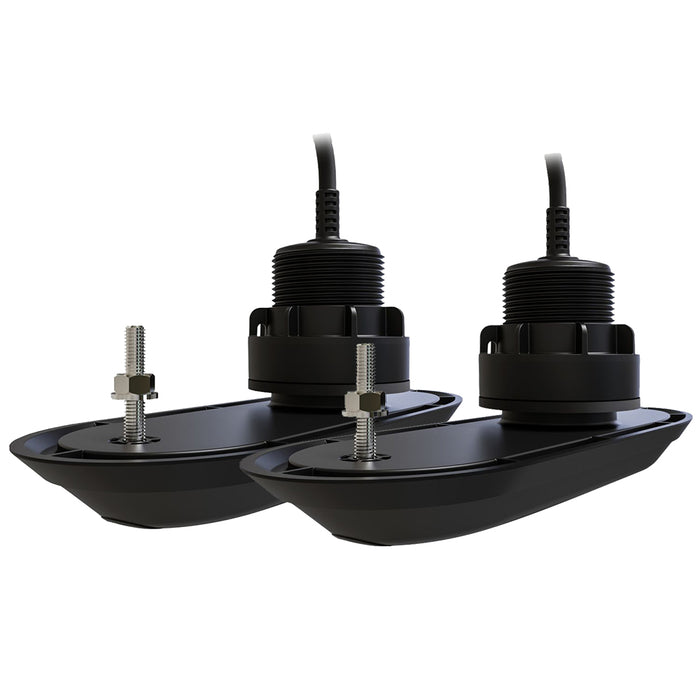

Raymarines RV-320 Plastic Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal offset to accommodate hull deadrise angles from 14 to 26. This completely eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-320 system works even works great on trailered boats.

The RV-320 system features rugged plastic through hull bodies suitable for fiberglass, steel or aluminum hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180 of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2-meter pigtail, joining y-cable and 8-meter extension cable, resulting in an overall cable length of 10 meters (33 feet.)

In the Box:

• RV-320P Plastic Port Transducer with 2-meter cable


• RV-320S Plastic Starboard Transducer with 2-meter cable


• RealVision 3D Transducer Y-Cable


• RealVision 3D 8-meter (26-feet) Transducer Extension Cable


• Anti-rotation bolt kit


• Installation instructions
