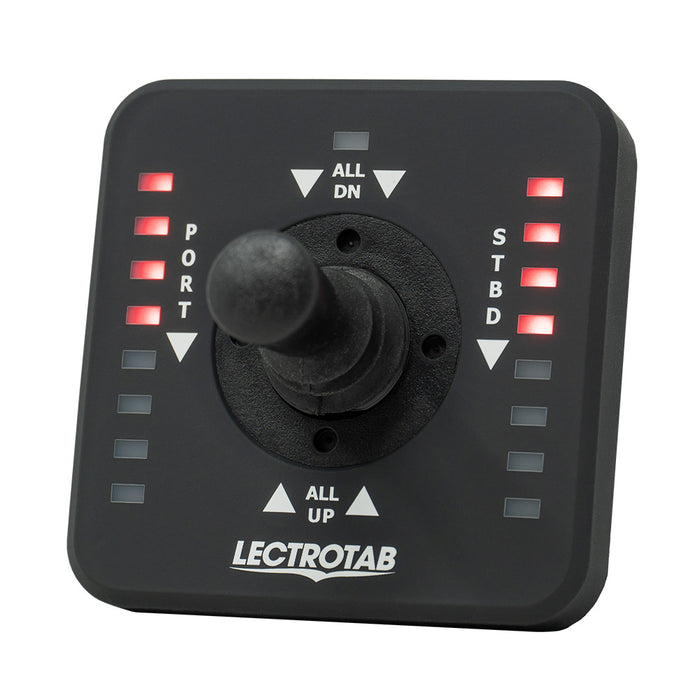

Lectrotab Joystick LED Trim Tab Control

Joystick LED Trim Tab Control

Lectrotabs Joystick LED control incorporates features requested by boat owners to provide user-friendly control for a more enjoyable boating experience.

Features:

• Single Joystick control


• NMEA 2000 compatible


• LED display of each trim tab position


• Microprocessor-based trim tab control with LED tab position indicators


• NMEA 2000 compatible with JLC-NMEA adapter


• Move both tabs up or down simultaneously with a single motion


• Dual station ready just add a second JLC-11 and JR-* cable (sold separately)


• Automatic return to last tab position if the ignition key is turned off and back on again


• Completely sealed, completely waterproof, and will not deteriorate in sunlight


• Automatic tab retraction and calibration with key or accessory switch off


• Easy upgrade from any of our Lectrotab controls


• No external power module required


• LED tab position indicators dim automatically in darkness and brighten in sunlight


• Single or Dual Actuator per tab


• Operates on 12 or 24 VDC systems

Specifications:

• Display Color: Black


• Number of Stations/Actuators: Single or Dual Station/1 or 2 Actuator/tab


• Overall Width: 3.0"/77mm


• Overall Height/Thickness: 3.0" (77mm)/2.0" (50mm)


• Mounting Hole Cutout (Diameter): 2.625"/66.7mm


• DC Voltage: 12/24


• Fuse Size Power Input (1 Actuator Per Tab): 12 VDC-15 or 20 AMPs 24 VDC = 10 AMPs


• Fuse Size Aux. (Must Connect): 1 to 2 AMPs
