Prince DP3 1012 Windlass - 1000W - 12V - 10mm (3/8") Gypsy

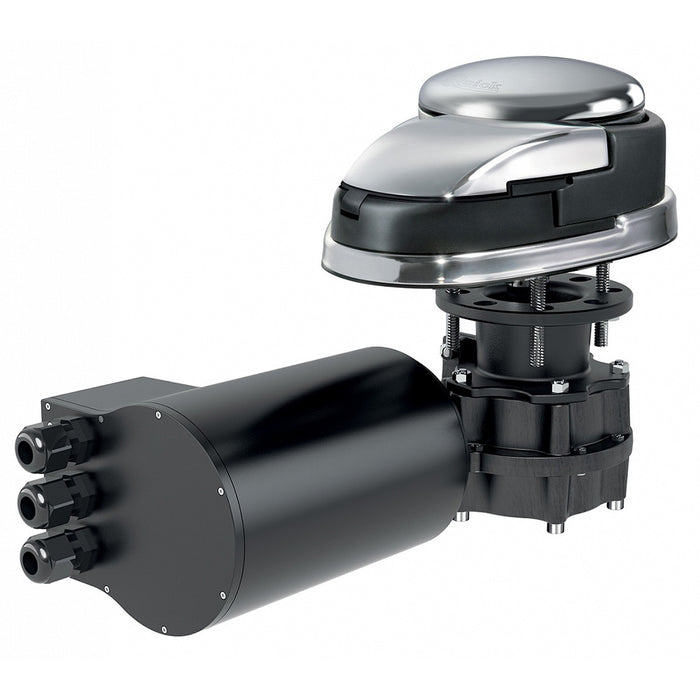

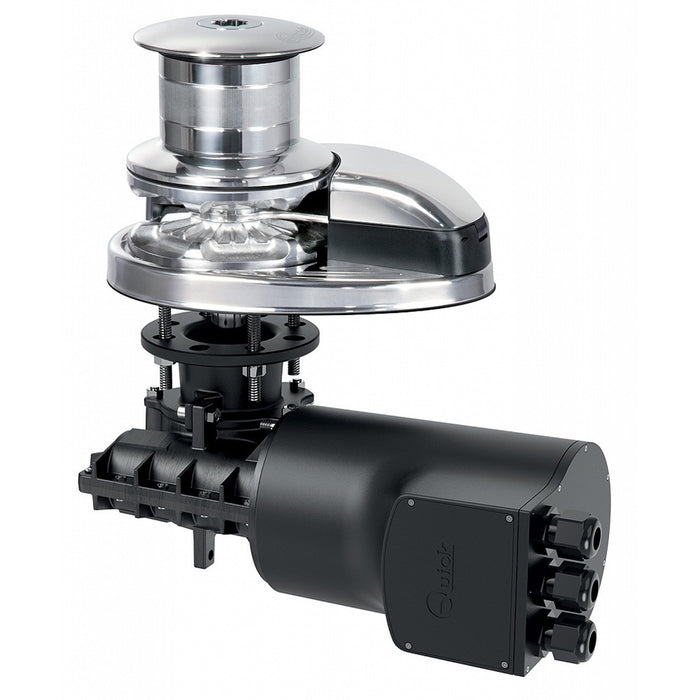

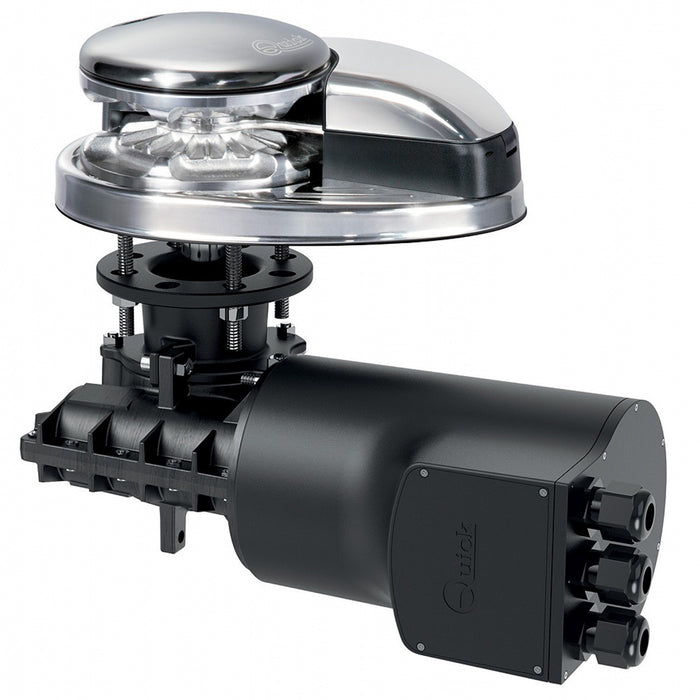

This Quick Prince windlass is a vertical-axis windlass.
Application:
- For boats 10-14 m (33-46 ft.)
Features:
- No drum
- Vertical windlasses
- Stainless steel Aisi 316 base and anodized aluminum in hard oxide
- Rope and chain on a single gypsy
- Integrated sensor and a magnet for chain counter
- Manual Free-Fall system
- Supplied with pressure lever
- Inspection lid
- Motor watertight to IP67
- Technopolymer Gearbox (1000W)
Specifications:
- Rope: 5/8 in. (15,8 mm)
- Motor Power: 1000 W
- Motor Supply Voltage: 12 V
- Maximum Pull: 1000 Kg / 2204 lb
- Maximum working load 370 Kg / 816 lb
- Working Load: 120 Kg / 264 lb
- Current Absorption @ Working Load: 140 A
- Maximum Chain Speed: 39,6 m/min / 129.2 ft/min
- Maximum Chain Speed @ Working Load: 20,4 m/min / 66.9 ft/min
- Weight - DP3 - [without drum]: 17,4 Kg / 38 lb
