Simrad NAC-1 Outboard Pilot Hydraulic Pack, MKII PUMP-1 Includes Point-1 AP
Simrad Outboard Pilot Hydraulic Pack with MKII Pump-1
Model: 000-15952-001- Easy to Install
- Dash-mount button for one-touch Auto/Standby activation
- Steer to Heading, Course or Route
- Automatic Turn Patters
- NAC-1 Plug & Socket connectors - no screw terminals or wire stripping necessary
- High efficiency, super-quiet 0.8L hydraulic gear pump (Pump-1 MKII)
- Add a second Helm station to a boat using the MFD Power steer commands - no need for additional hydraulics + steering wheel.
Outboard Pilot is an MFD Autopilot add-on system designed for boats up to 30ft with single outboard motor. System packs contain everything you need to fit an Autopilot to Hydraulic or Cable steer outboard motors.
SpecificationsSupply Voltag12vDC
Max Drive output
8A continuous, 16 Amp peak
Interfaces
Network
1xMicroC
Feedback
Variable voltage from HELM -1 drive unit
Drive output
To PUMP-1 or HELM-1

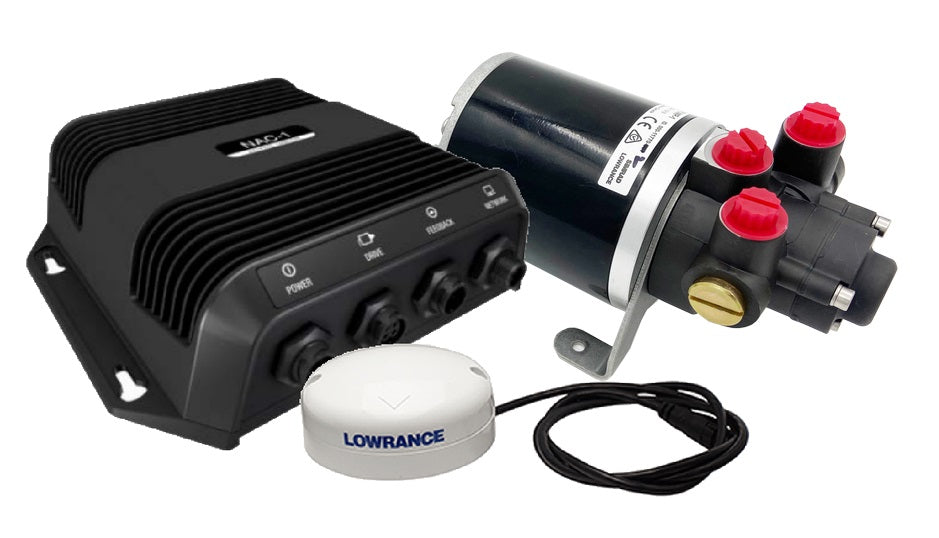

What's in the Box:
- NAC-1 AUTOPILOT COMPUTER
- PUMP-1 - 12V 0.8L For outboard pilot
- Autopilot pump fitting kit for ORB steering system
- Auto-Stby Button - Metal
- N2KEXT-2RD - 0.61 m (2-ft) NMEA 2000(R) cable
- N2KEXT-6RD - 1.82 m (6-ft) NMEA 2000(R) cable
- N2KEXT-15RD - 4.55 m (15-ft) NMEA 2000(R) cable
- TR-120-KIT - Set of 1 male and 1 female NMEA 2000(R) terminators
- MICRO-C Power cable only
- Low loss NMEA2000 4-way joiner
- Point-1 AP Heading and GPS Sensor
